Toy LEGO production making on PE extrusion blow molding machine

FOB Reference Price:Get Latest Price
$32,800.00 - $62,800.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TVHD-5L Hydraulic system
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Place of Origin:
Zhejiang, China
Brand Name:
Tonva
Voltage:
380V/3PH/50HZ
Dimension(L*W*H):
3.5X2.1X2.2M
Certification:
ISO9001
Warranty:
1 Year
Material:
PE /HDPE
Type:
pure hydraulic system
Capacity:
200-3600BPH
Suitable bottle:
below 5Liter bottle or ball or container
Brand:
Tonva
diameter of screw:
80
screw L/D ratio:
25:1
clamping force:
80KN
clamping range:
200mm
Sliding distance:
450-550mm
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
Yes
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
59-63KW
Weight:
7800kg
Supply Ability
Supply Ability:
400 Set/Sets per Year
Packaging & Delivery
Packaging Details
film package water proof for machine
wooden case for molds
Port
ningbo port
Product Description

 TVHD Series Machine Brief Introduction:

- TVHD series double station machine is adopted pure hydraulic system.With compact structure, running stable and easy to control;

- Products size range:suitable for 5ml to 5L all kinds of hollow products;

- Application range:can be used as packing for food,medical,oil,chemical,cosmetic,autoparts,tools and toys etc;

- Suitable for raw materials of PE,PP,PA,PC,PS,ABS,TPU,EVA,PETG etc;

- Pure hydraulic system:optimized hydraulic oil loop design gains a stable,fast,power saving property;

- All parts adopts international famous brand,easy for installation and matainence;

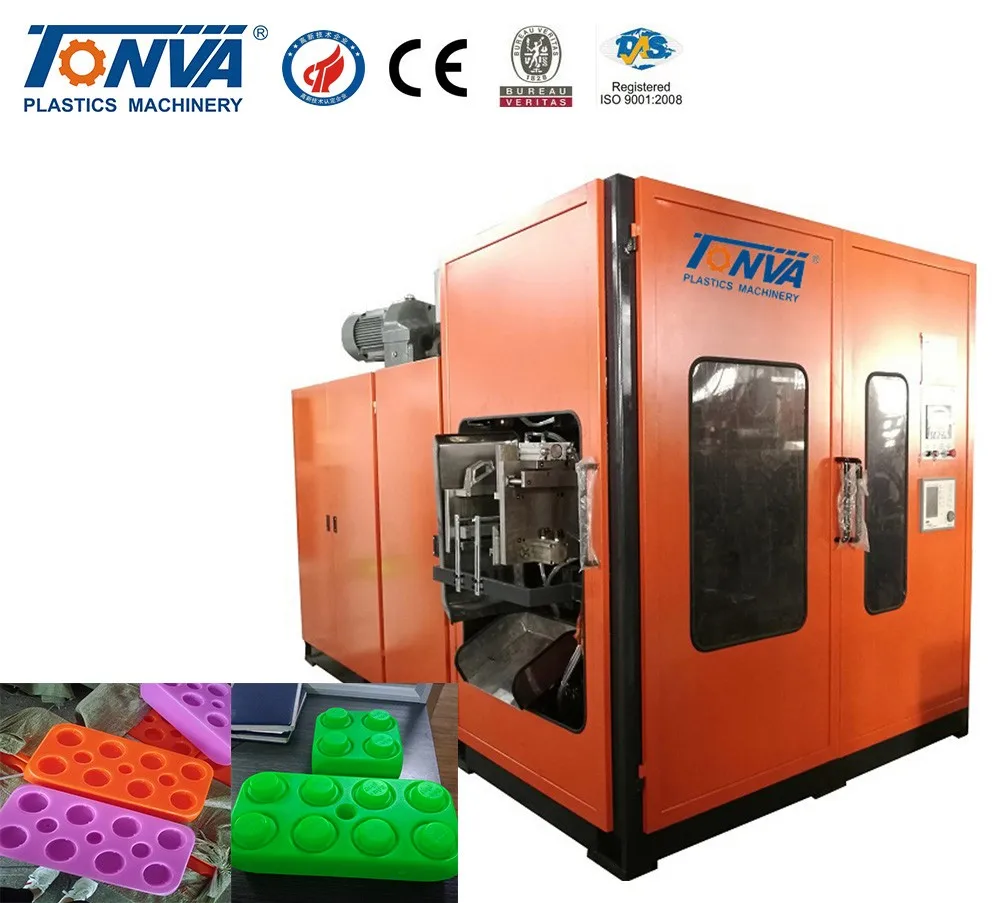

TVHD-5L MACHINE DESCRIPTION:

Model: TVHD-5L,hydraulic system,double station

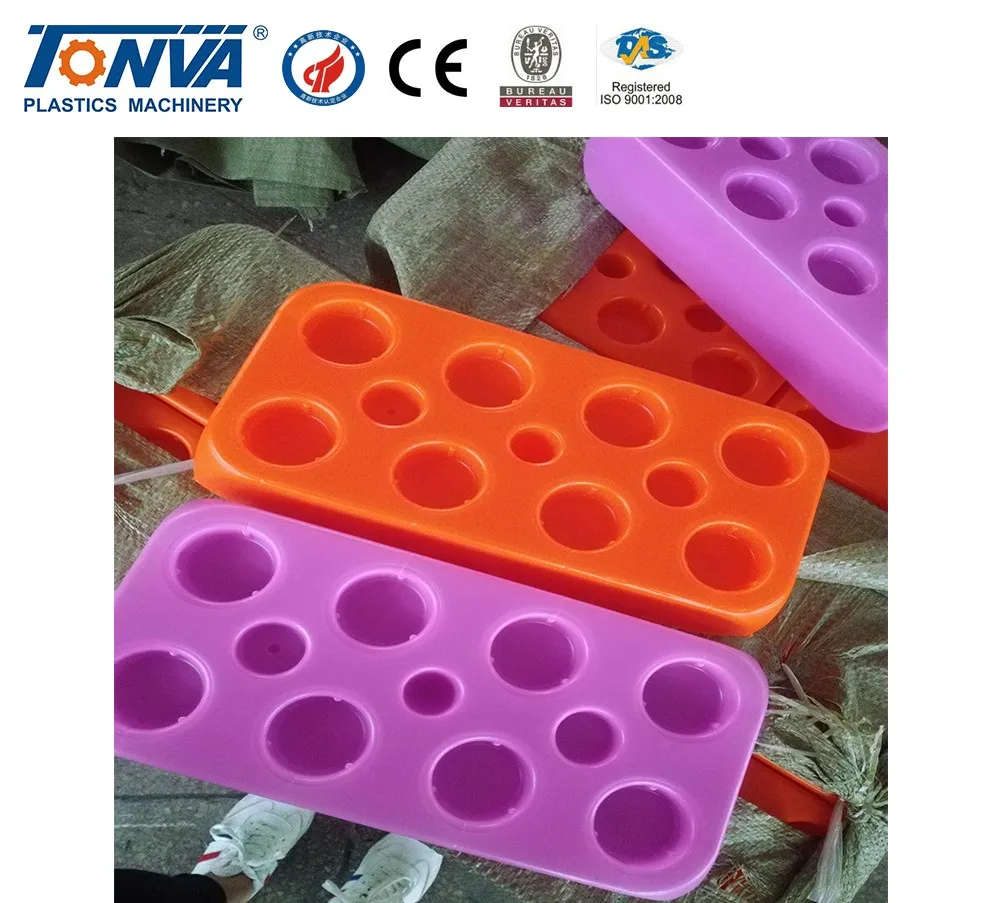

Product range: Plastic building blocks,pot,jerry can etc

Screw diameter: 80mm

Clamping force: 80KN

Capacity: 400-1600pcs per hour

Number of die head: Depend on products

Total Power: 59-63kw


SPECIFICATIONS FOR  TVHD-5L blow moulding machine

Basic specification
Output
pcs /hour
200-3300
Dimention
m
3.5*2.1*2.2
Total weight
Kgs
8000

Extrusion system
Diameter of  screw
mm
80
Screw L/D ratio
L/D
25:1
Placsticzing capacity
Kg/h
95


Clamping System
Clamping range
mm
200
sliding  distance
mm
400-550
Clamping force
KN
80

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) oblique  Blow pin to match oblique  mouth, specifial design for customer.

Detailed Images

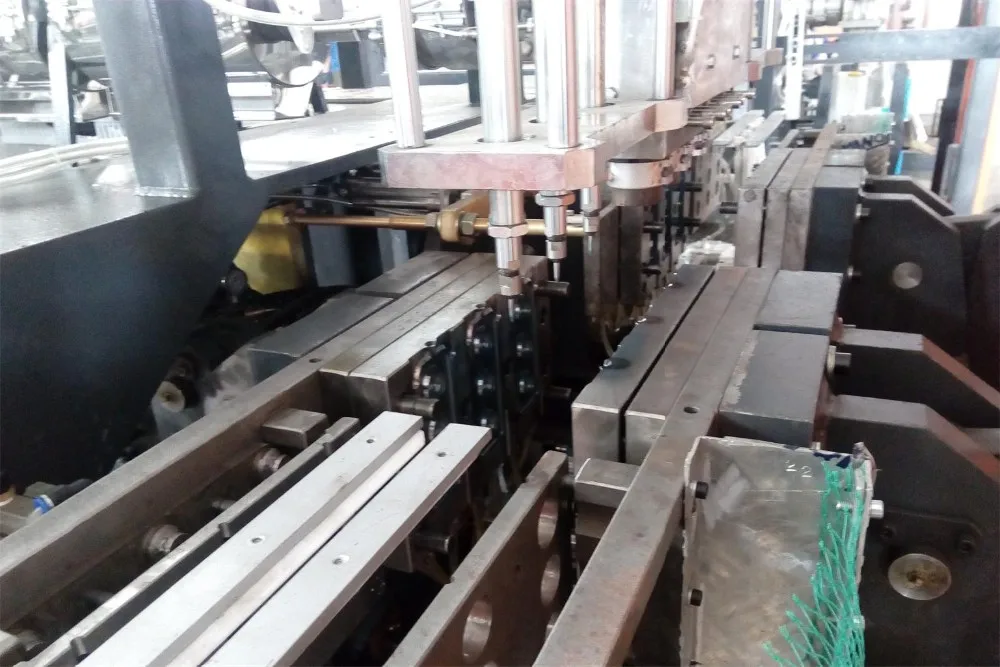

Machine Parts

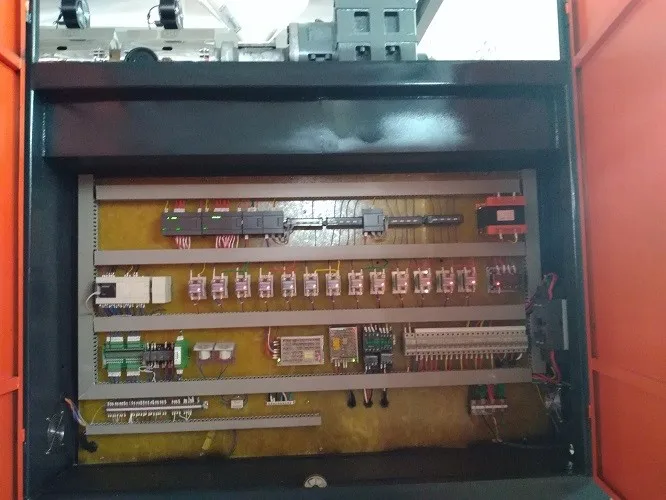

Name: Electrical parts

Brand:  Schneider, simens, Invt, festo, YUKEN, AIRTAC ETC.






Our Service

Pre-Sales Service

1,Instruction for Installation and Debugging:

* Before delivery, TONVA takes responsiblity for debugging of machine, in order to make sure provided machine could be safely and smoothly put into operation.


3,Warranty Period:

The waranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

User Training:

Before delivery,TONVA will take responsibility to indoctrinate technical training to the users so that they could understand machines' features and could operate the machine by themselves.

Packing & Delivery
Packaging
Size
3.5*2.1*2.2M
Weight
8000kg



Packaging Details
The normal package  is  film  waterproof or pack it according to customers special request.
