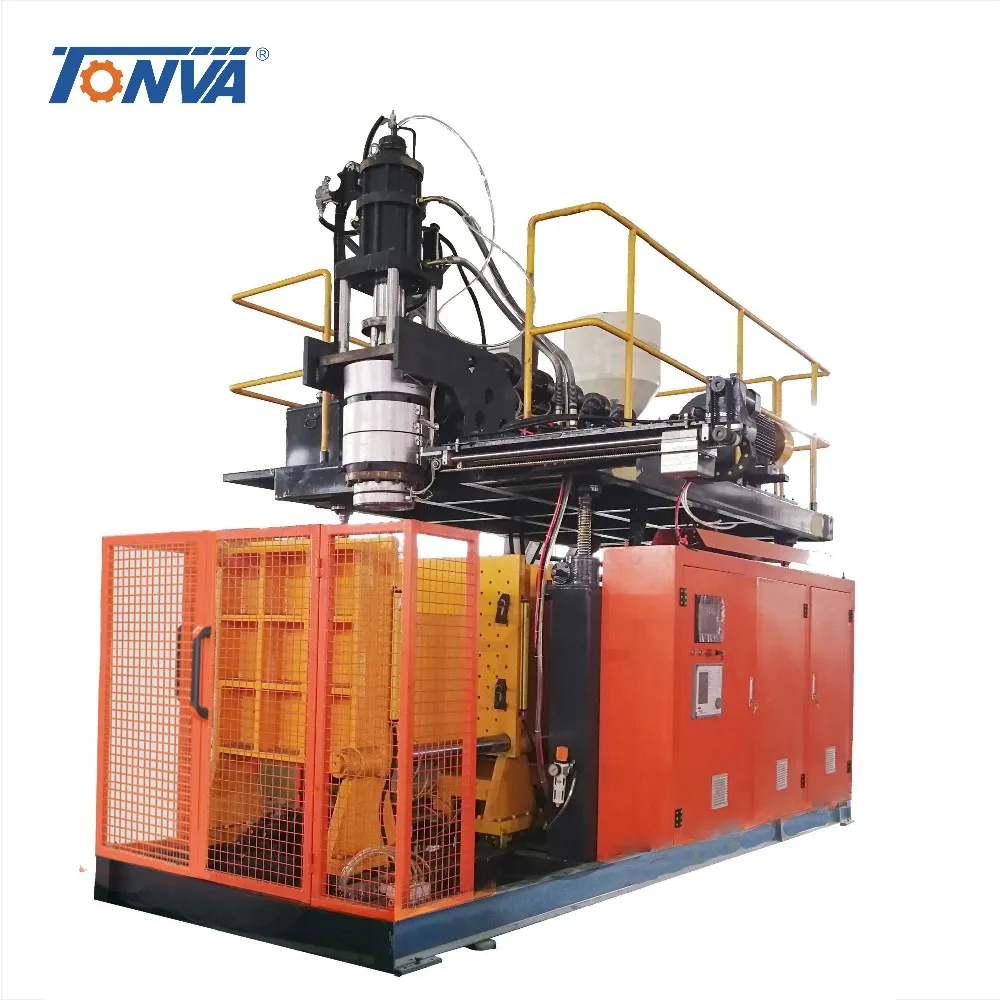

Large 30L automatic extrusion blow molding machine to make jerry can

FOB Reference Price:Get Latest Price
$30,000.00 - $60,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TVA-30L
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 80 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
factory
Condition:
New
Application:
plastic barrel,chair,auto parts etc
Plastic Processed:
PE
Blow Moulding Type:
Extrusion Blow Moulding
Place of Origin:
Zhejiang, China
Brand Name:
TONVA
Voltage:
220V/380V415V50/60HZ/3phase
Power(W):
22kw
Dimension(L*W*H):
4.2*2.6*3.4m
Weight:
9500KGS
Certification:
CE ISO SGS
Warranty:
1 Year Guarantee
After-sales Service Provided:
Online support, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
Automatic
Raw material:
PP PE
Keywords:
Machine
Product:
Jeery can
Machine type:
Accumulator type
Supply Ability
Supply Ability:
500 Set/Sets per Year
Packaging & Delivery
Packaging Details
Film packing as standard package
Port
Ningbo
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 80 To be negotiated
Product Description
Technical Specification
Plasticising capacity
100kg/hour
Extruder drive power
22kw
Max die-pin diameter
350mm
Accumulator capacity
4.4kg
Clamping      force
150KN

Main Features

1) Two  pull-rod type closing-mold device by rack and pinion system. The large setting platen is suitable for various sizes of moluds.

2) Adopting accumulator die head ,with high quality nitrogen treatment and hardness of surface,resulting smoothflow and quick parison ejection.

3)Based on products,equip with standard parison controller,to control the thickness of parison precisely.

Product Application

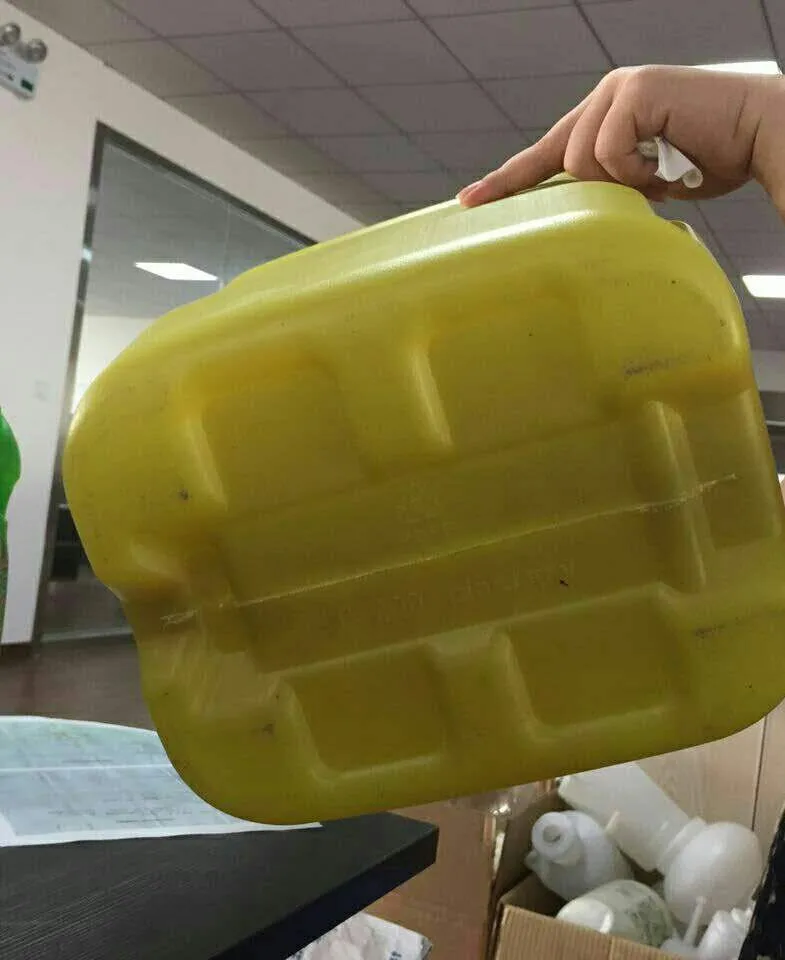

This machne  is suitable for PE,PP,PS,raw material,and volume between 10Lto 30L.It's widely use in plastic barrel,tool boxes,hollow desk board,chair,auto parts and other large and medium-sized plastic hollow products.

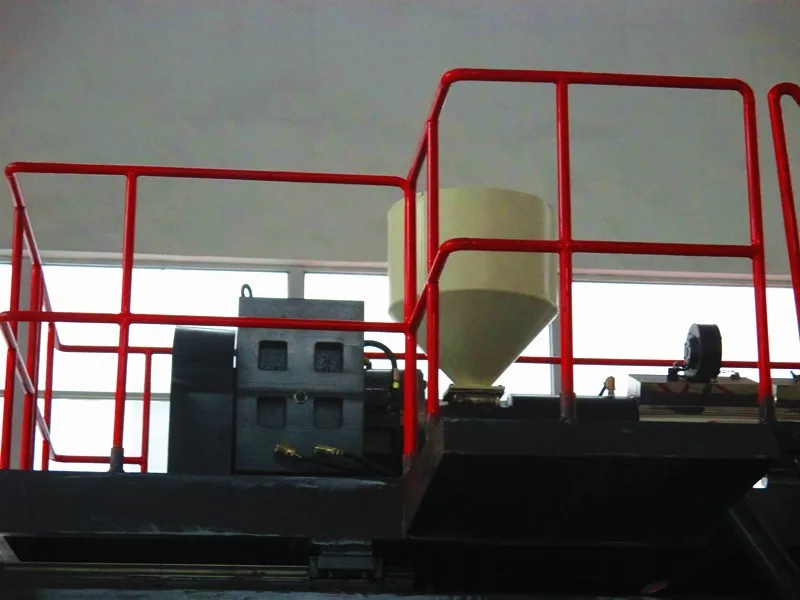

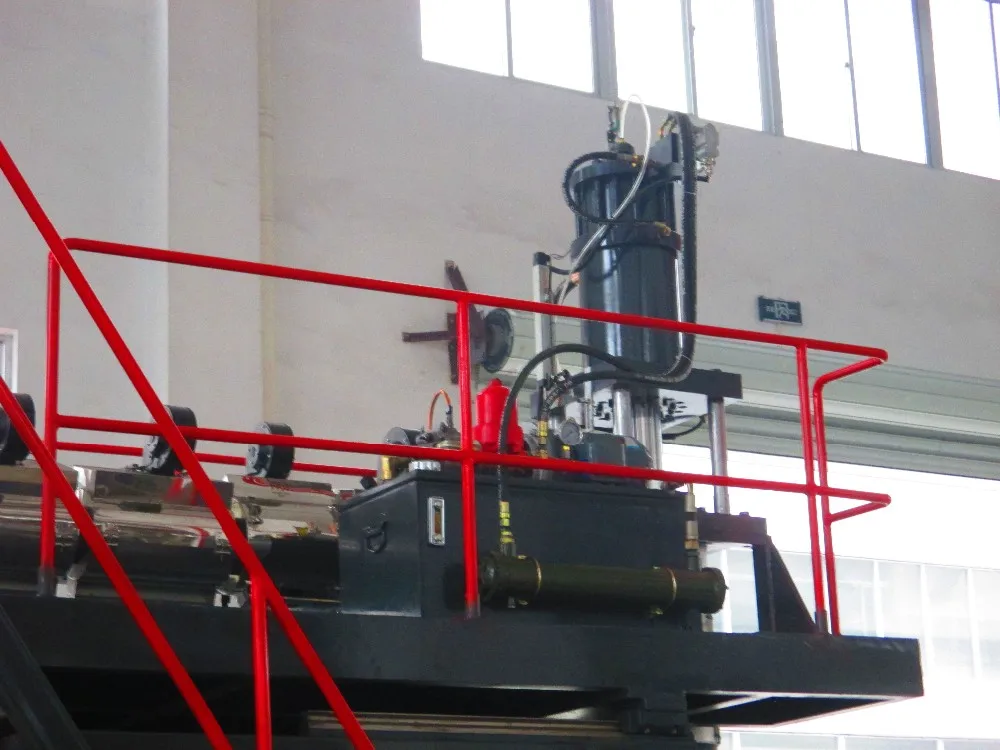

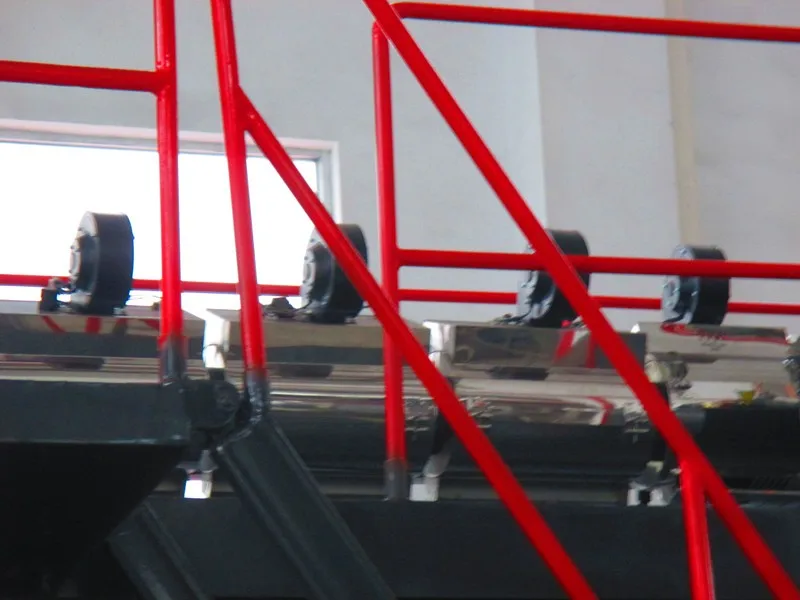

Detailed Images
We Provide
After-Sale Service

1. Instruction for Installation and Debugging:
Before delivery, TONVA takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
TONVA also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer of TONVA, provides the engineer with round-trip tickets, accommodation, vehicle and USD100 per day for salary.
2. User Training:
Before delivery, TONVA will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period:
The warranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.

Packing & Delivery
Contact Us
Contact person
Ms.Joye Chen
E-mail
joye at tonva.cn
Mob/Whatsapp
+86 187 6764 8383
Wechat
187 6764 8383
