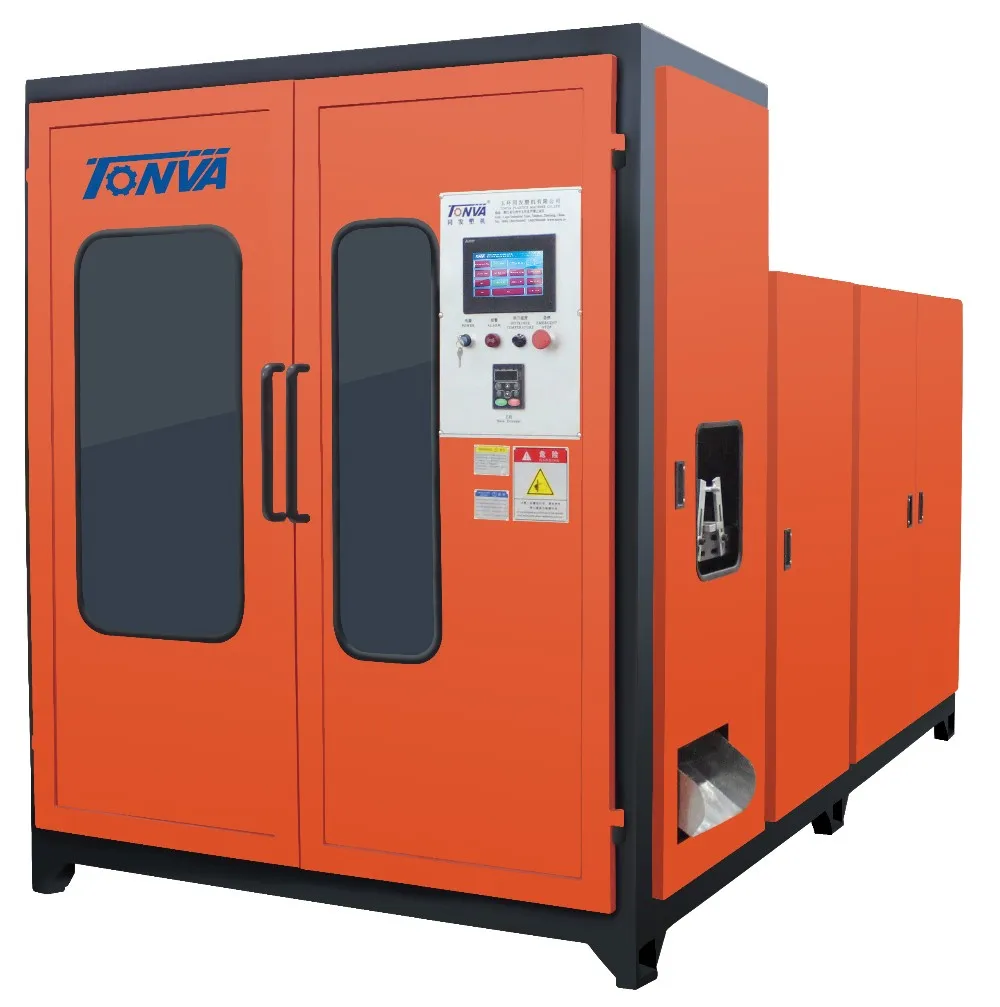

Pneumatic cylinder blow molding plastic jug making machine up to 2L

FOB Reference Price:Get Latest Price
$19,000.00 - $27,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TVD-2L
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Place of Origin:
Zhejiang, China
Brand Name:
TONVA
Voltage:
380V
Dimension(L*W*H):
2.9*1.9*1.8
Certification:
ISO9001;BV;CE;SGS
Warranty:
1 Year
Raw Material:
PE/PP/PA/PVC etc
Working Stations:
double
Product range:
3ml - 2L
Clamping Force:
50KN
Clamping:
pneumatic
Parison Controller:
Optional
View-stripe:
Optional
Multilayer:
Optional
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
Yes
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
15kW
Weight:
3200kg
Supply Ability
Supply Ability:
35 Set/Sets per Month
Packaging & Delivery
Packaging Details
Film packaging or wood packaging usually
Port
Ningbo
Welcome To TONVA
Product Description

Plasticizing Cpacity At 70kg/h Of 2L Hollow Product Blowing Machine


TVD-2L Basic Specification:

* Double Station
* 65mm screw / 15kw motor;
* PE etc material;
* Automatic Trimming: Neck/Bottom/Handle/Slides;

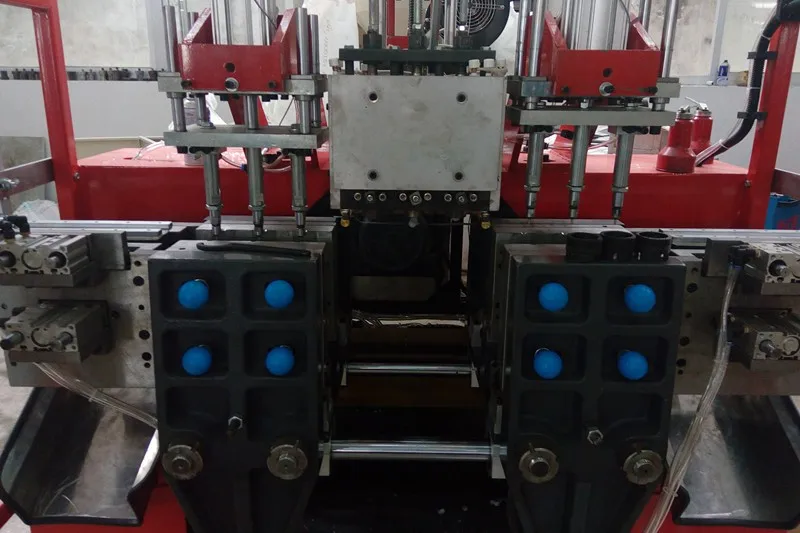

* Die-heads for choosing:
   Single die-head(1L to 2L) ---at 300pcs per hour;

   Double die-heads(500ML to 1L)---at 800pcs per hour;

   Triple die-heads(200ML to 500ML)---at 1500pcs per hour;

   Four die-heads(up to 200ML)---at 2500pcs per hour;

* Center distance:

   Four die-heads---80mm;Triple die-heads---100mm;Two die-heads---160mm;


TVD-2L Working condition:
* Power supply: 380VAC/50Hz (depending on client's country)
* Water Cooling: 20℃(3HP Water chiller)
* Air source: 0.6Mpa, 0.8m³/min (1.0 m³/min air compressor)


TVD-2L Technical Parameter
CATEGORY
ITEM
UNIT
TVD-2L
Basic Specification
Raw Material
--
PE/PP/PA/PVC etc
Dimension
m
2.9*1.9*1.8
Total Weight
kg
3200

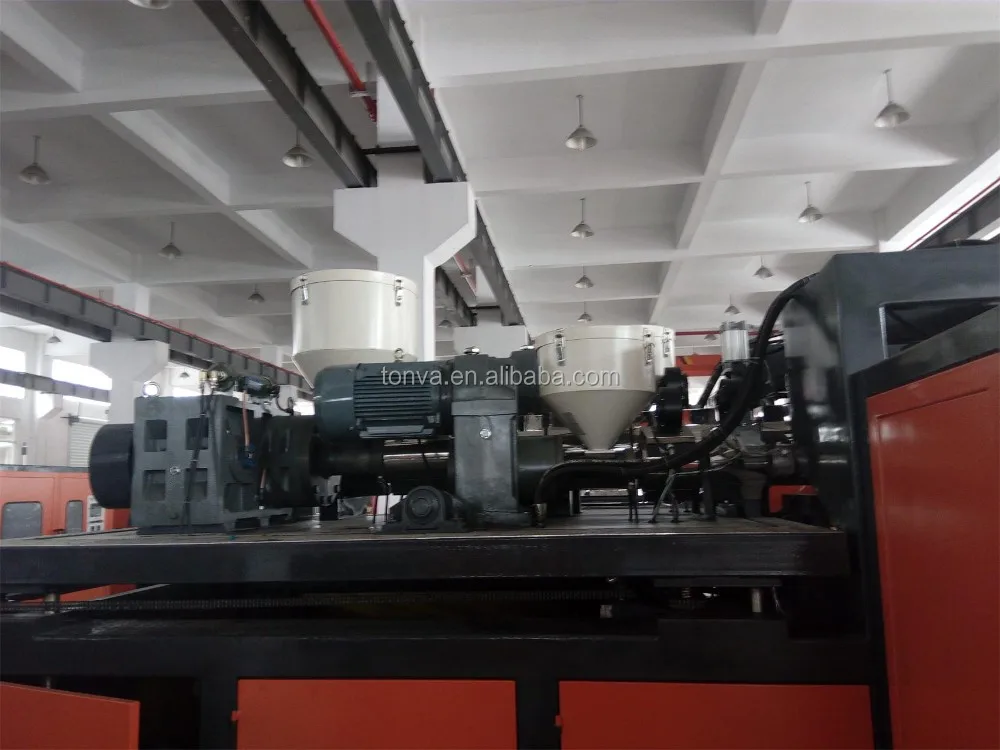

Extrusion System
Diameter of screw
mm
65
Screw L/D ration
L/D
25:1
Plasticizing capacity
kg/h
70
Number of heating zones
pcs
5
Extruder heating power
kw
15
Extruder drive power
kw
15
Die Head
Number of heating zones
pcs
2
Heating power
kw
4
Number of head
cavity
1-4

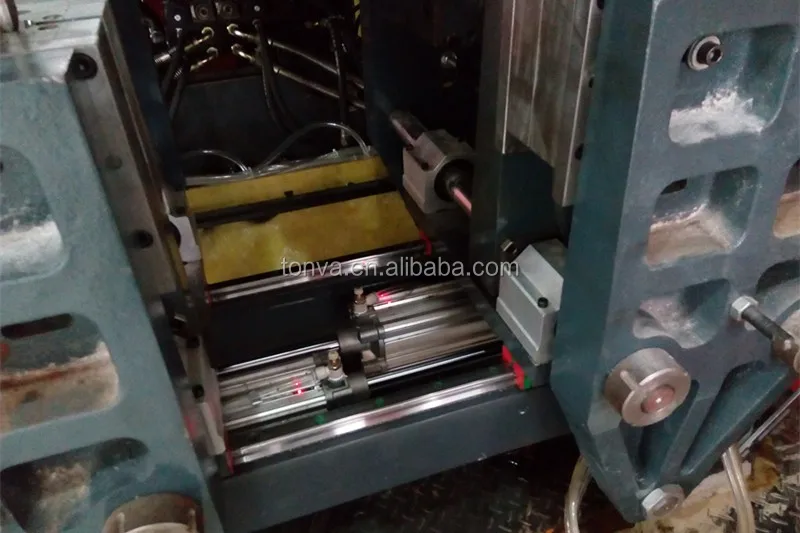

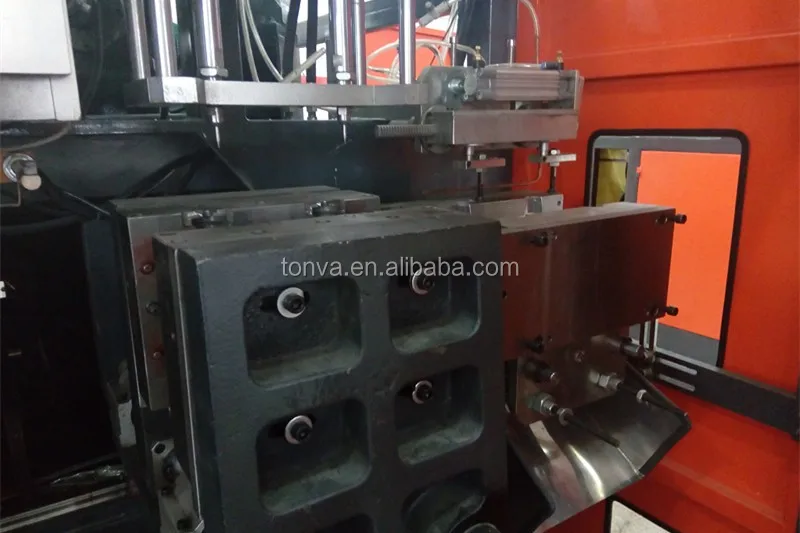

Clamping System
Clamping range
mm
150
Sliding Distance
mm
360

Main performance parameters
Clamping force
kn
50
Power Consumption
Air pressure
Mpa
0.6
Air consumption
m3/min
0.8

Hydraulic system
Cooling water pressure
Mpa
0.3
Cooling water consumtion
m³/h
1.0
Total Power
KW
34
Average power consumption
KW
15

Technical Characteristic:

1) Smart series double station blow molding machine is TONVA company's original design,it's combines bydraulic and pneumatic.

2) The performance is well and running stable,it's easy to operater.The sal;es is hundreds and it's mature design in company.

3) Suitable from 5ml to 5L.

4) Suitable for drug bottle,washing bottle,oil bottle,plastic toy,beverage bottle,drill box etc.

Our Service

a. Reply the email and take action in 24 hours.
b. 100% Quality inspection before the shipment.
c. Can training clients operator for free in selle's factory.
d. Engineer overseas is available.
e. Blowing mold and injection mold made original.
f. Auxiliary machines for complete line.
g. Customized design as requirements.


1,Instruction for Installation and Debugging:

Before delivery, TONVA takes responsiblity for debugging of machine, in order to make sure provided machine could be safely and smoothly put into operation.

TONVA also take responsiblity to have debugging overseas, and clients aborad please first send invitation,then provide our engineer with round-trip tickets,accommodation,vehicle and USD80 per day for salary.


2,User Training:

Before delivery,TONVA will take responsibility to indoctrinate technical training to the users so that they could understand machines' features and could operate the machine by themselves.

3,Warranty Period:

The waranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.
