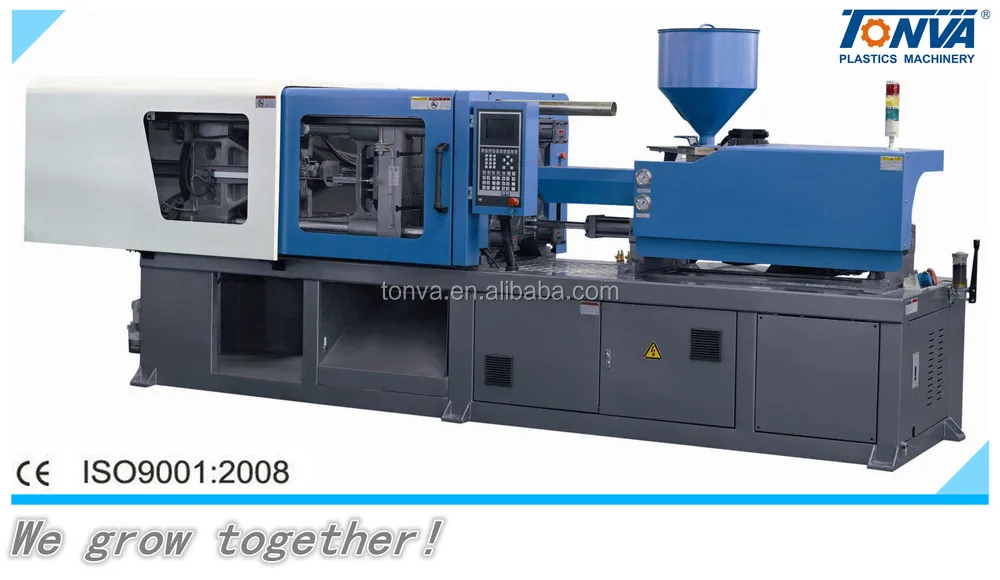

170 Tons PET preform injection moulding machine price

FOB Reference Price:Get Latest Price
$30,000.00 - $40,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
YVI170-PET
Report Suspicious Activity
Overview
Quick Details
Clamping Force:
1700KN
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Brand Name:
YAOVA
Place of Origin:
Zhejiang, China
Plastic Type:
Thermoplastic
Automatic:
Yes
Opening Stroke:
440mm
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Injection Weight:
961g
Injection Rate:
384g/s
Power(W):
53KW
Supply Ability
Supply Ability:
400 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden package
Port
NINGBO
Product Description

Product Application

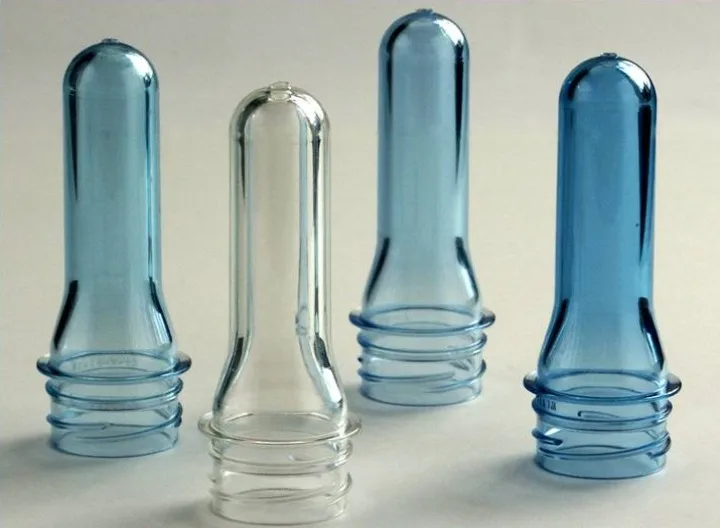

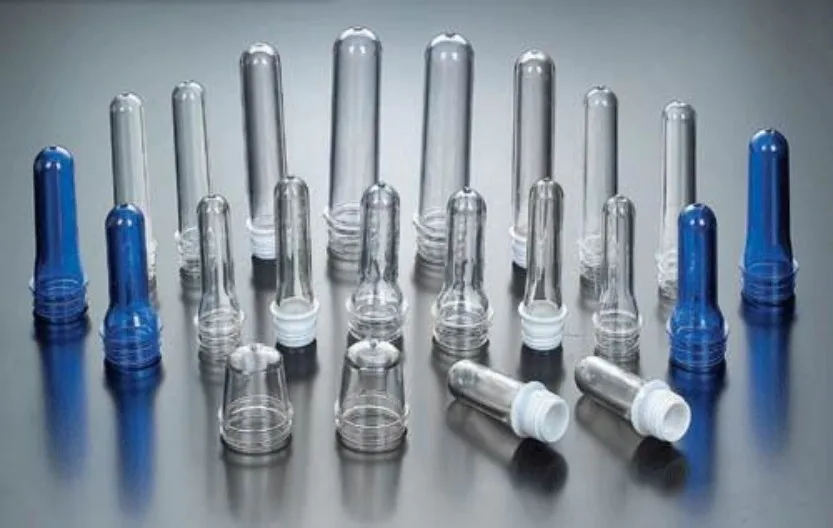

The TVI series  PET preform injection moulding machine are  widely used to produce preform of trecarbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. By telling the weight of preform ,neck size, productivity or cavity number of  preform mould, we would provide ideal design for the whole project per  requirment.

Preform injection machine
Item
YVI170-PET
Inject unit
Screw Diameter
mm
65
Screw L/D ratio
/
24
Shot Volume
cm3
895
Injection Weight
g
961
Injection Speed
g/s
384
Injection Pressure
Mpa
130
Screw Speed
rpm
134
Clamping Unit
Clamping force
KN
1700
Open stroke
mm
440
Max mould thickness
mm
570
Min mould thickness
mm
180
Space between tie bars
mm
470x470
Ejector Force
KN
70
Ejector Stroke
mm
135
Ejector bars
pcs
5
Others
Max pump pressure
Mpa
16
Pump power
kw
30
Heat power
kw
22.3
Dimension
m
6x1.5x2.2

Main Features

-LCD Control system

-Displacement System

-Decompression Control Device .

-Back-pressure Ajustment &Control

-Double Electrical Interlocking Safe Device .

-Hydraulic Adjusting Adjusting .

-Low pressure Claming Protect .

-Automatic Mold Thickness Ajusting .

-High speed Mold Clamping

-Mutiply Hdraulic Ejection

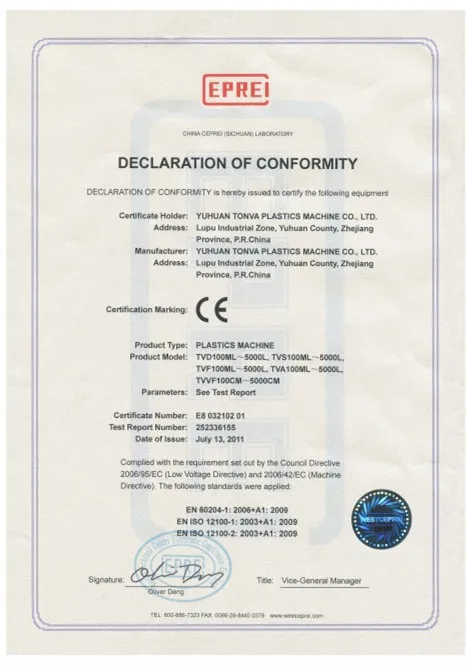

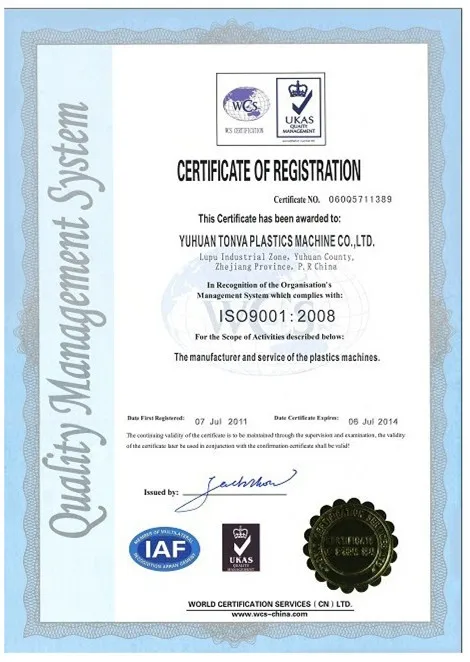

Certifications
Detailed Images

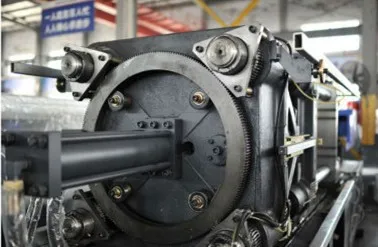

Automatic Mould Height

Adjustment saves the time and cost during mould changing..

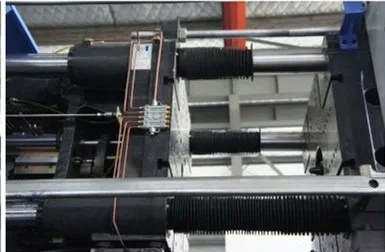

Clamping Unit

Five point inward moving double toggle system ensure high tigidity and also reducing stress and strain effects.

Hydraulic Unit

The hydraulic system using the world famouse pump and control valve can control the machine run precisely.

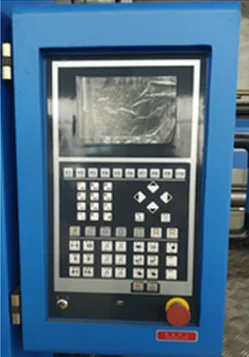

Electronically controlled unit



Our Service

1. Reply the email and take action in 24 hours;

2. 100% Quality inspection before the shipment;

3. Can trainning clients operator for free in seller`s factory

4. Engineer overseas is available

5. Blowing mould and injection mould made original

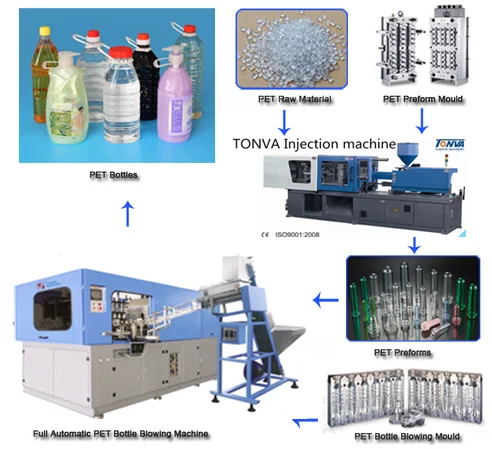

6.We will provide turnkey project machines for the complete production according to customer's requires.

Packing & Delivery

Standard wooden case package.

Related Products

We also supply PET blow moulding machine ,and auxiliary machines like water chiller,mixer, crusher etc for the  turnkey project.
