220L plastic drum extrusion blow molding machine

FOB Reference Price:Get Latest Price
US $100,000-130,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TVA-220L
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Barrel
Plastic Processed:
PE
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TONVA
Voltage:
380V/50HZ
Power(W):
56kw
Dimension(L*W*H):
7*5.3*4.8
Weight:
18800kg
Certification:
CE ISO SGS
Warranty:
One Year Guarantee
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
400 Set/Sets per Year 220L blow molding machine
Packaging & Delivery
Packaging Details
film packing as standard package
Port
NINGBO
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 120 To be negotiated
Our Company
Product Description

Product Application

Extrusion Blowing Molding Machine is suitable for producing PE plastic containers and barrels in all shapes. It is widely used to produce the water tank, roadblock etc.

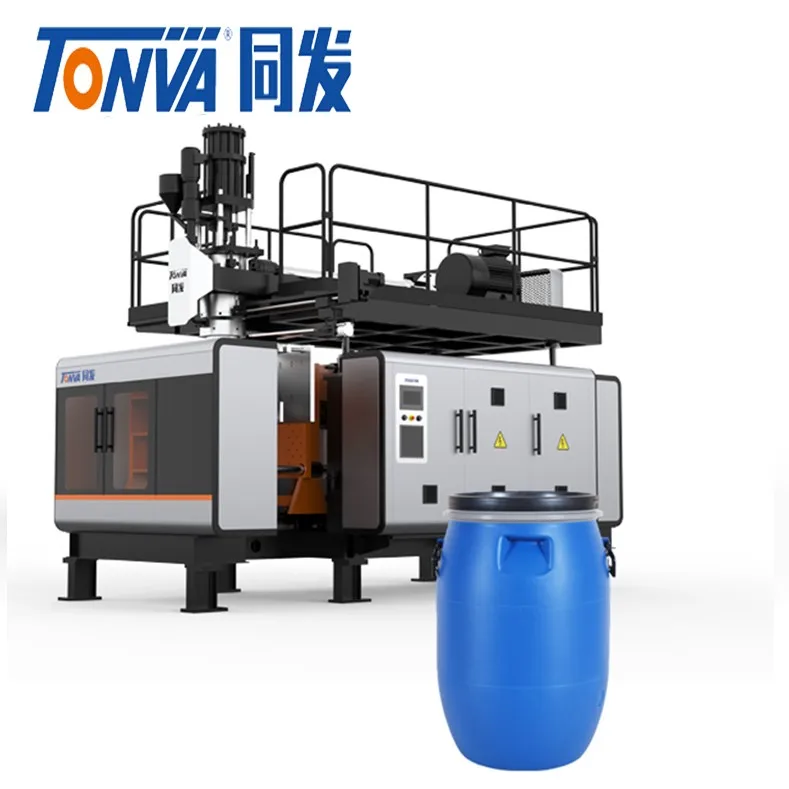

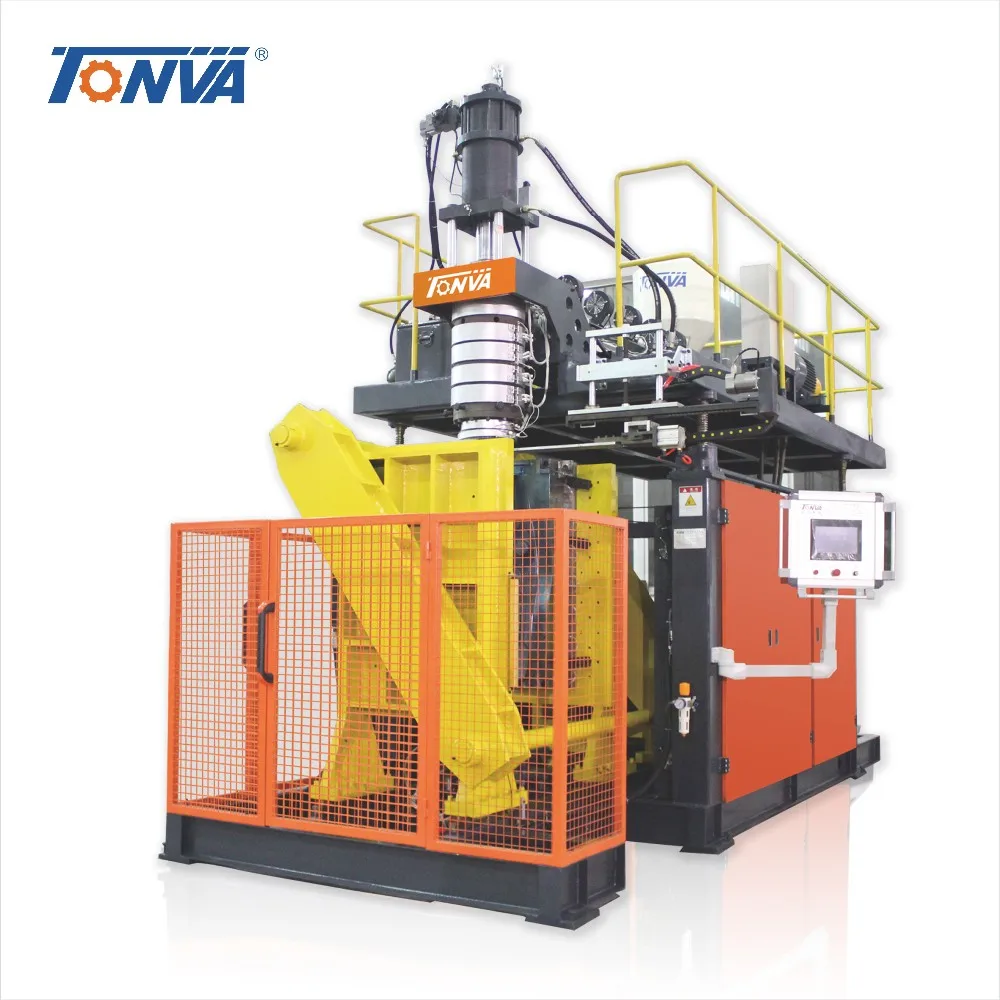

220L plastic drum extrusion blow molding machine



Basic Specification
Raw Material
----
HDPE etc
Container Capacity Max
L
220
Machine Dimension
m
7*5.3*4.8
Total Weight
kg
18800

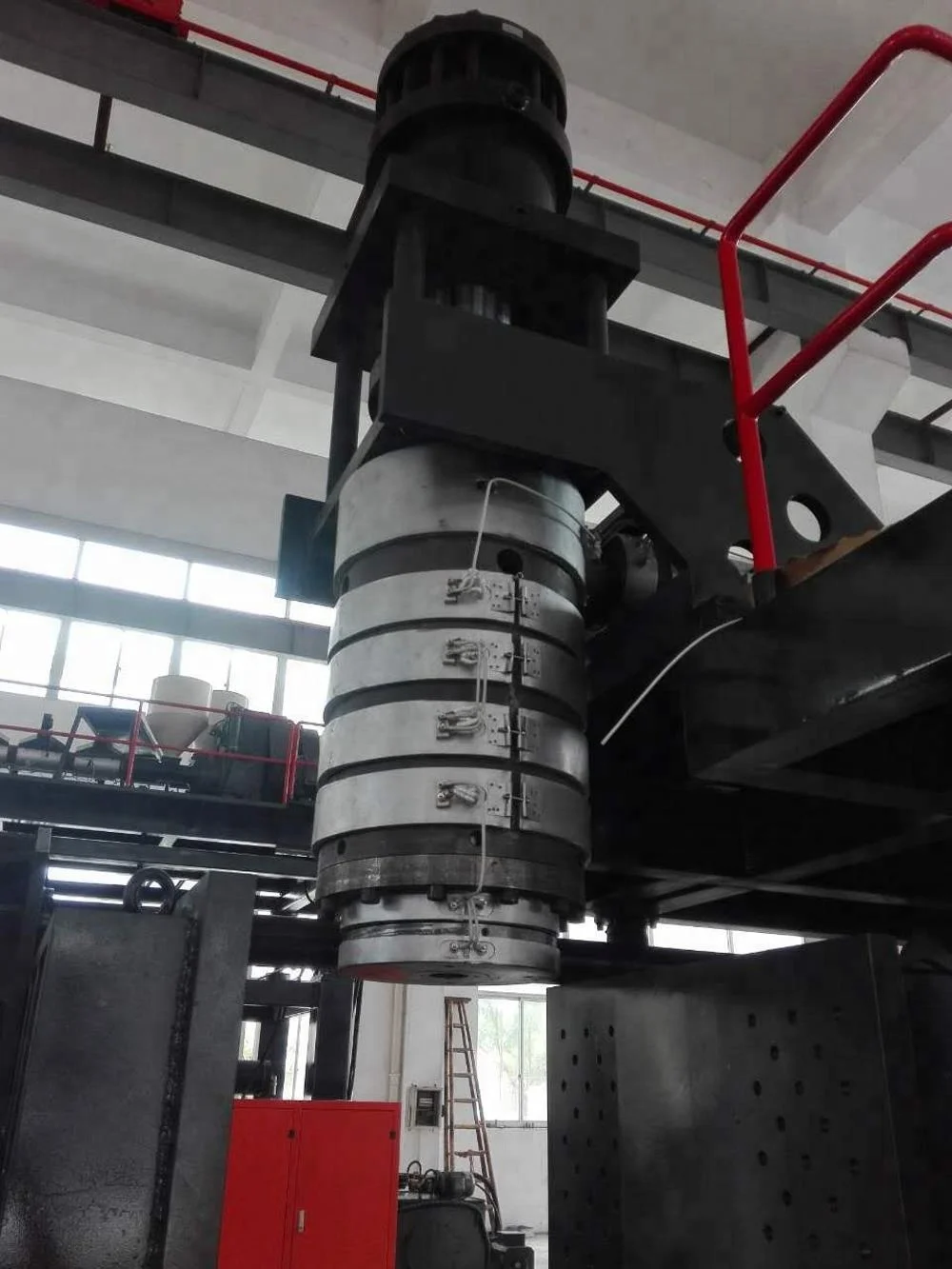

     Extrusion System
Diameter of screw
mm
110
Screw L/D ratio
L/D
32:1
Screw rotating speed
r/min
10-85
Plasticizing capacity
kg/h
240
Drive motor
kW
55
Heating power
kW
27
Certifications
Detailed Images



MOOG Points 100 Parison Controller

Brand: MOOG

Original: JAPAN

100 points of standard parison thickness controller.

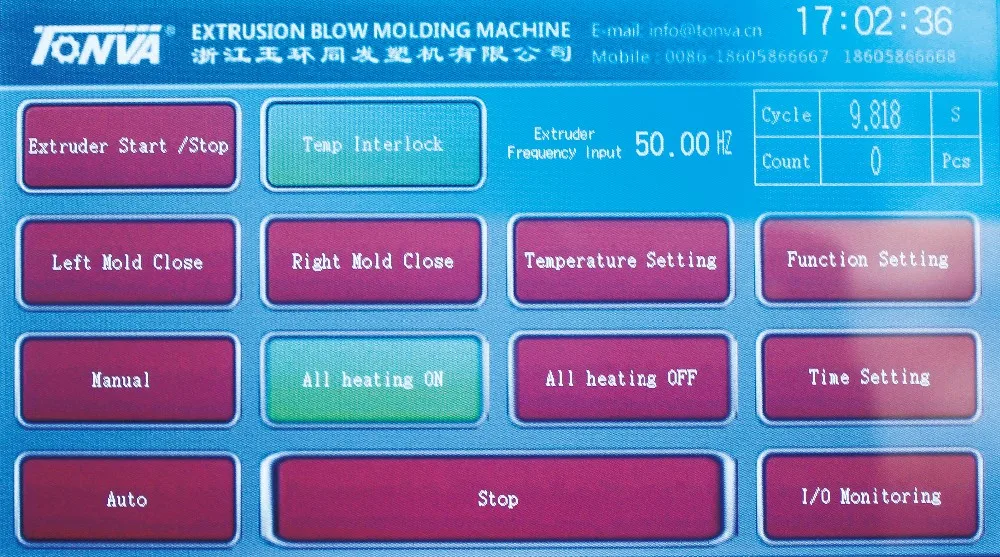

Human Machine Interface

Brand: MITSUBISHI
Original:
JAPAN

Touch screen,easy for setting and changing parameter.

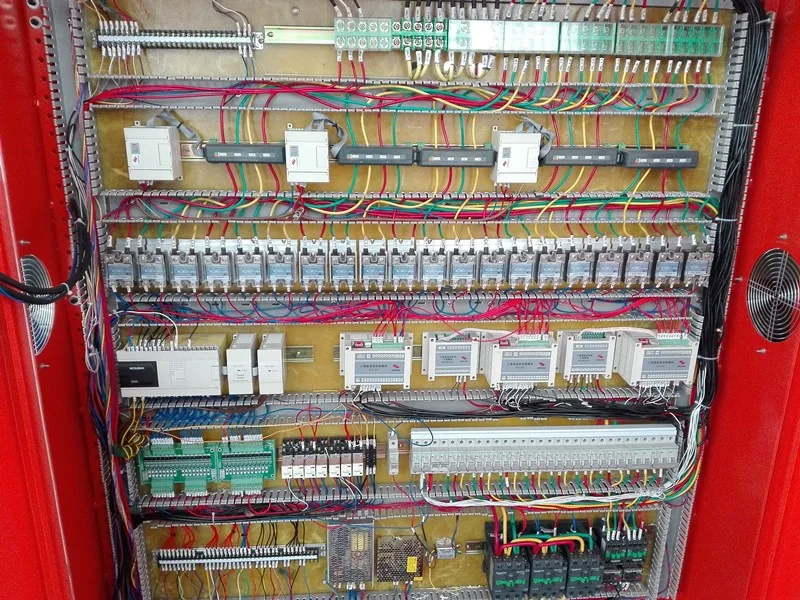

Electrical System

Brand:SCHNEIDER
Original: FRANCE
Famous brand componments(SCHNEIDER),stable and durable.

Packing & Delivery
Packaging
Size(m)
8 (L) * 6 (W) * 5.5 (H)
Weight(kg)
19000



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
