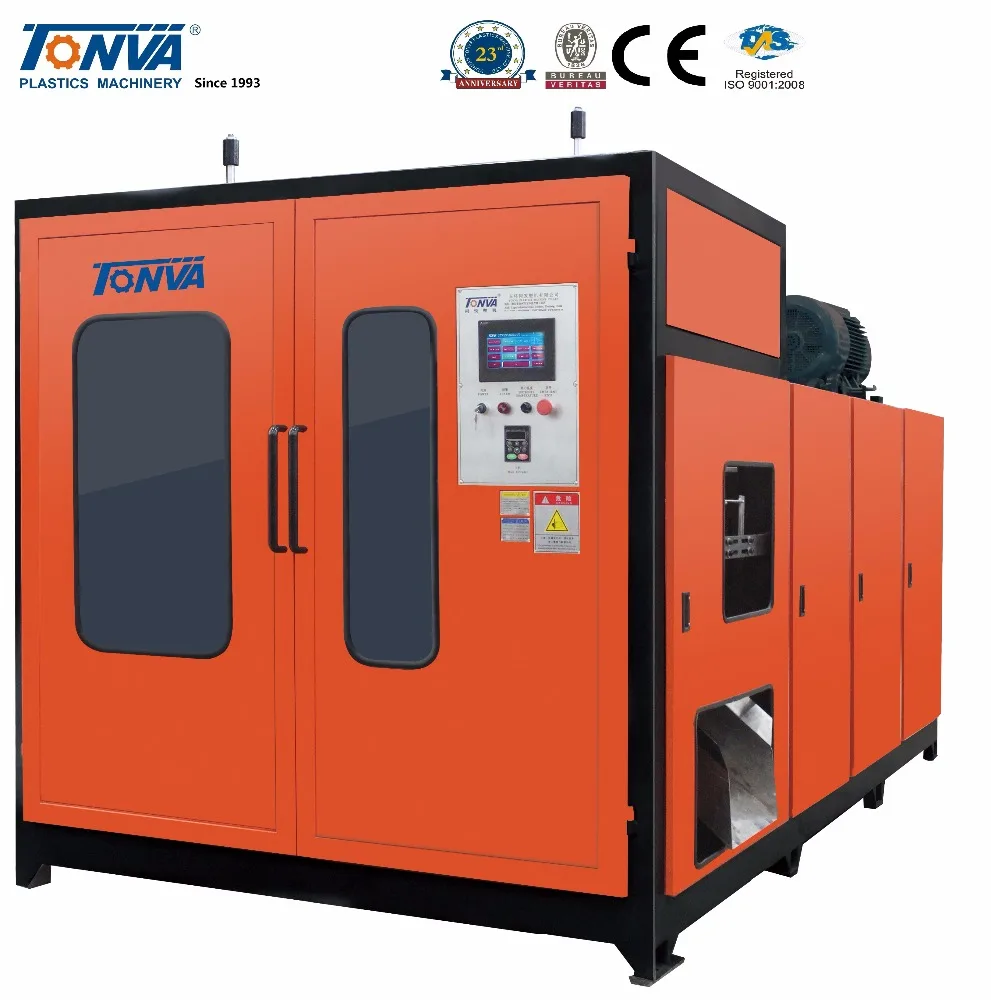

10L plastic jerry can double station blow moulding machine

FOB Reference Price:Get Latest Price
US $30,000-60,000 / Sets | 1 Set/Sets automatic making machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TONVA
Model Number:
TVHD-10L
Voltage:
380V
Power(W):
30KW
Dimension(L*W*H):
4.2m*3.0m*2.2m
Weight:
9800kg
Certification:
CE ISO SGS
Warranty:
1 Year Guarantee
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
Customer Customized
Material:
PE etc
Parison controller:
optional
Key words:
extrusion blow molding machine
Use:
hollow container
Advantages:
stable
Supply Ability
Supply Ability:
400 Set/Sets per Year automatic making machine
Packaging & Delivery
Packaging Details
film packing as standard packing
Port
Ningbo
Lead Time :
Shipped in 60 days after payment
Product Description

Product Application

Automatic 5ml-10L plastic jerry can production blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used as packing for food,medical,oil,chemial,cosmetic,autoparts,tools,and toys etc,suitable for less than 10L hollow products.


10L plastic jerry can double station blow moulding machine
Extruder Unit
Screw diameter
mm
90
Plasticising capacity
kg/hour
120
Extruder heating power
kw
23

Clamping Unit
Clamping force
KN
100
Platen open stroke
mm
250-300
Sliding distance
mm
450-500





    Power consumption
Air pressure
Mpa
0.6
Air consumption
m3/min
0.6
Cooling water pressure
Mpa
0.3
Cooling water consumption
m3/h
1.5
Oil pump power
kW
11
Oil pump capacity
ml/r
59
Total power
kW
72
Average power consumption
kW
45

Main Features

Adopts  pure hydraulic system,has compact structure,running satble and easy to control.

Optimized hydraulic oil loop design gains a stable,fast, power saving property.And all parts adopt international famous brand,easy for installation and maintenance.

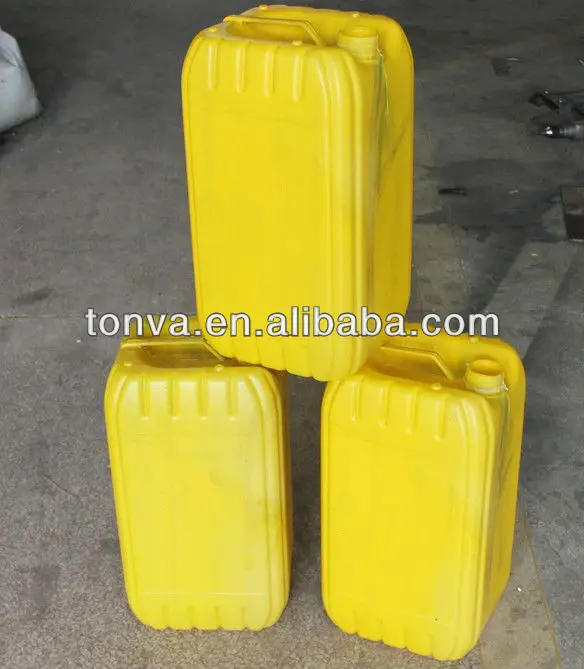

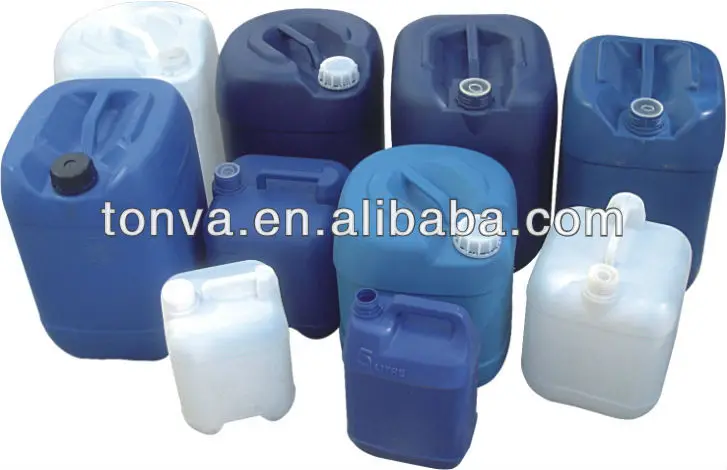

Products
Certifications
Detailed Images

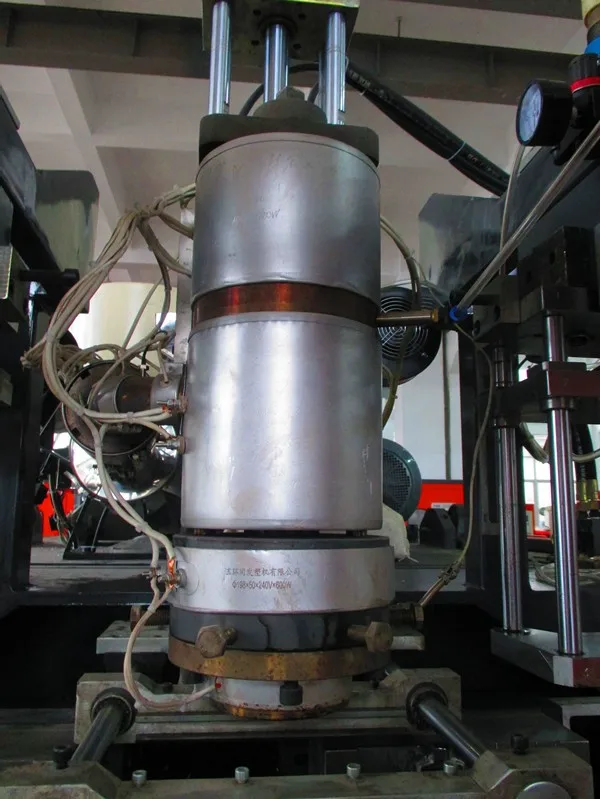

Die-head

Melting plastic stock in accumulator before eject out, the weight and thickness can be controlled freely.

Parison controller

It's precise to control the thickness of the products.( optional )

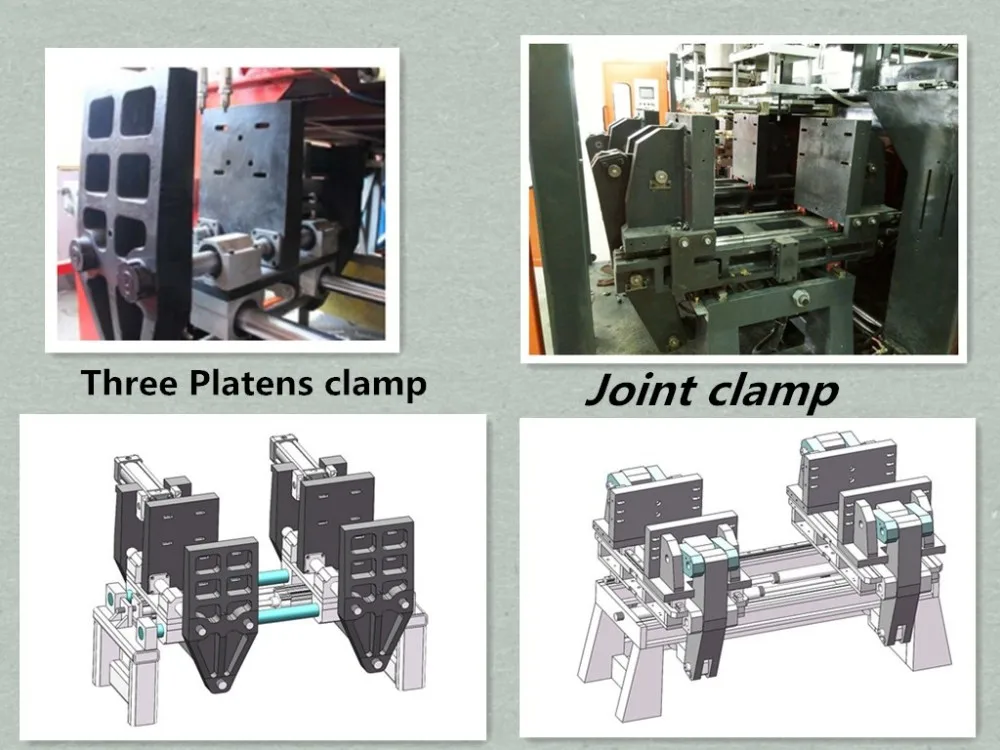

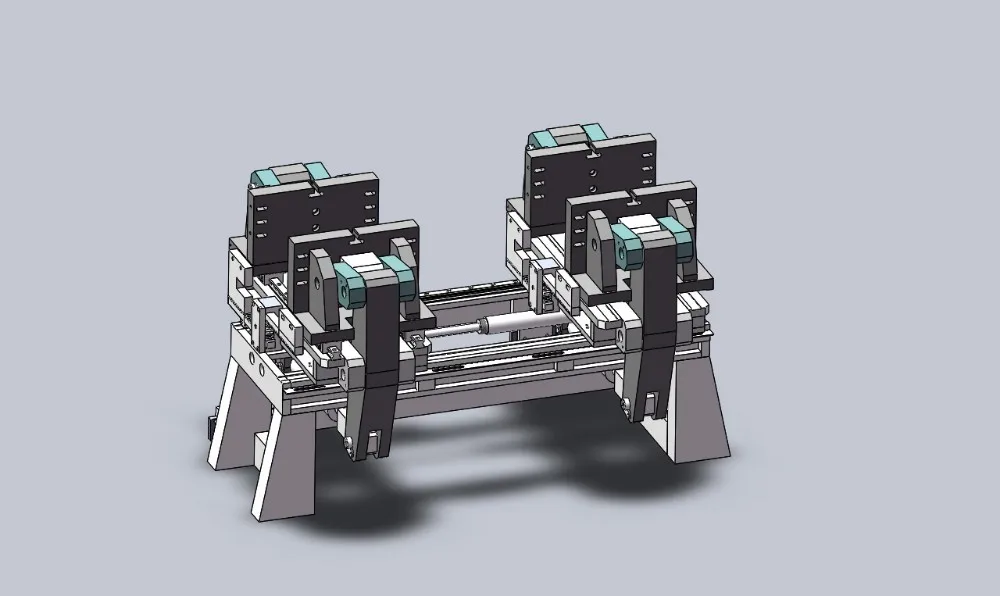

Clamping system

Double tie-bar, clamping by hydraulic cylinders.
Adopts clamp-style with two platens, forced by hydraulic cylinder at the bottom. This special structure ensures the rigid feature of the platen and in order to keep the even of force forward on the mould.

Our Service

1. Instruction for Installation and Debugging:

Before delivery,TONVA is responsible for debugging of machines,to make sure the provided machine could safely and smoothly put into operation;
TONVA also takes responsibility to have debugging overseas,and clients abroad please send invitation to engineer of TONVA in advance,provides the engineer with round-trip tickets,accommodation,vehicle and USD80 per day for salary.


2. User Training:


Before delivery,TONVA will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.

3. Warranty Period:


The warranty period for TONVA machine is one year with a life-long maintenance.Other stipulated warranty could be made if clients require special quality guarantee.

Note:Above information is only for reference,the product can be customized based on different requirements.

If you are interested in our products or you have any question,please let me konw,we will try our best to help, and greatly appreciate!
