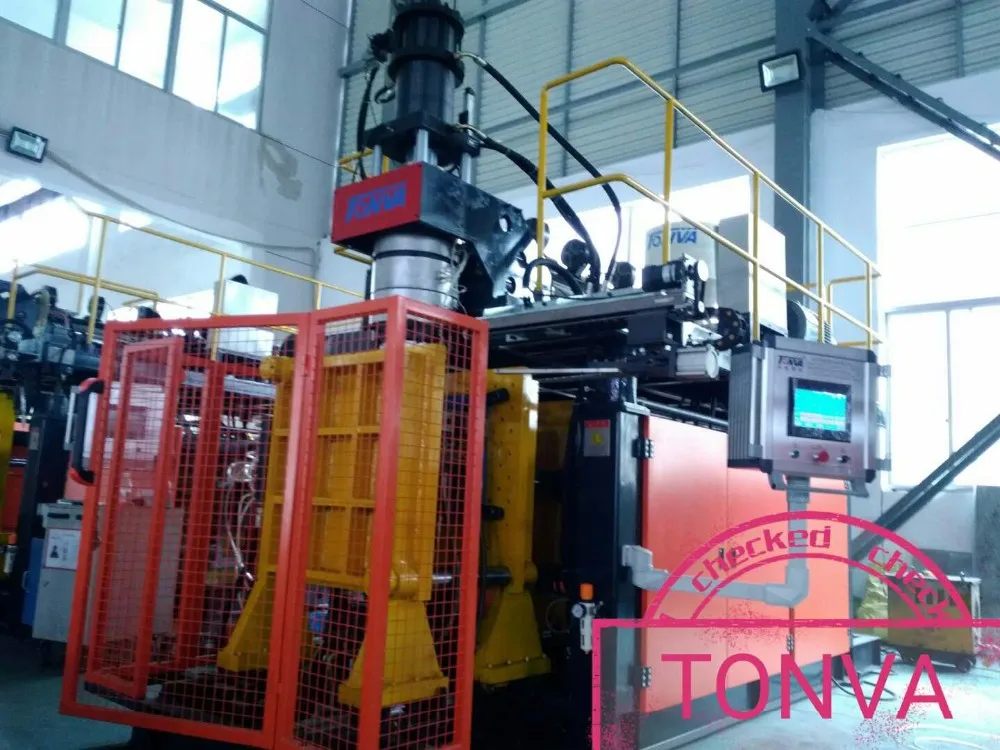

Plastic water barrier bottle tank jerrycan making blow molding Machine best price

FOB Reference Price:Get Latest Price
$30,000.00 - $55,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TVA-20/30L Series
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
oil tank
Plastic Processed:
PE
Blow Moulding Type:
Extrusion Blow Moulding
Place of Origin:
Zhejiang, China
Brand Name:
TONVA
Voltage:
380V/50HZ
Power(W):
15KW
Dimension(L*W*H):
4.5*3.6*3.4m
Weight:
5TONS
Certification:
CE BV ISO9001:2008
Warranty:
1 Year
Diameter of screw:
65/55/45
Screw L/D ratio:
30:1
Screw rotating speed:
10-85 r/min
Plasticizing capacity:
160kg/h
Drive motor:
15kw
Heating power of extrusion system:
15kw
Die head material:
38CRMOALA
Accumulator volume:
5.4L
Accumulator capacity:
4kg
Clamping range:
350-900mm
Automatic:
Yes
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
400 Set/Sets per Year
Packaging & Delivery
Packaging Details
Film waterproof package
Port
Ningbo
Product Description

Product Application

TONVA Extrusion Blow Molding Machine can be divided into Smart series, Standard series, Accumulator type large series. The range of the capacity is from 3ml to 3000L with one layer to seven layers. They are suitable for Various materials, as PE,PP,PVC,PS,EVOH,EVA etc. They are used to produce various kinds of plastic products, such as oil barrel,Sprayer barrel,cosmetics bottle,pharmaceuticals bottle,food package,plastic toys,Christmas ball,plastic experimental apparatus and auto-parts etc.
Based on different functions, TONVA Extrusion Blow Molding Machine has served optional functions for clients products: such as Parison controller for bottle area wall thickness control, Co-extrusion of multiple layers, view line strip device, up&down device, filter and deflashing device.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications
Detailed Images

Machine Parts

Electric System
1.Adopt AC contactor and thermal overload protection relays;
2.Adopt solid state and auxiliary relay;
3.Equip cooling fans to control the temperature;

Main Features

Double tie rod hydraulic clamping, the structure is compact, effective mold size increase 25%.
Double clamping pull rod center, guide rails positioning accurate, maximize clamping stroke;
Equipped with clamp synchronizing rack mechanism to ensure smooth runs on mold opening/closing sequences;
Mold opening and closing sequences are safe-guarded by a non-contact transducer and switch in order to ensure accuracy of each motion;

blowing system

The movements of blowing platen in vertical level for blowing pin up and down and horizontal level for parison stretch are drive by hydraulic motor.
Adopt Taiwan Mindman pneumatic valves for blowing and air releasing process, working portable and endurable.

Cooling system

Mould: water cooling for the mould, to keep the mould at suitable temperature.
Throat feed zone in barrel: also equipped with water cooling, in order to prevent overheating.

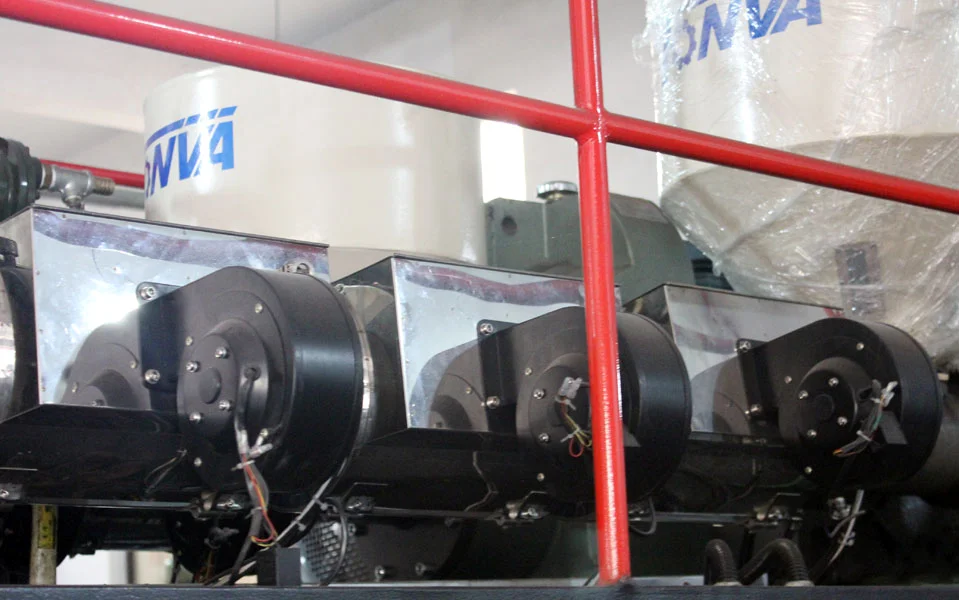

Barrel: fan cooler for the heating zones, to keep temperature at setting level.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
5.3(L) * 6.4(W) *2.4(D)
Weight
20 Ton



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
5.3(L) * 6.4(W) *2.4(D)
Weight
20T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
