TVA-3000L series blow molding machine for IBC multilayer barrels and other large-sized plastic hollow products

FOB Reference Price:Get Latest Price
US $189,998-239,998 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TONVA
Model Number:
TVA-3000L Series(with auto loader)
Voltage:
380V/50HZ
Power(W):
290-435kw
Dimension(L*W*H):
9.1x6.4x7m
Weight:
42000-58000kg
Certification:
CE BV ISO9001:2008
Diameter of screw:
150mm
Screw L/D ratio:
30:1
Screw rotating speed:
10-85 r/min
Plasticizing capacity:
500-740kg/h
Drive motor:
130kw
Heating power of extrusion system:
55kw
Die head material:
38CRMOALA
Accumulator volume:
100L
Accumulator capacity:
75kg
Clamping range:
1200-3400mm
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
400 Set/Sets per Year
Packaging & Delivery
Packaging Details
Film & case
Port
Ningbo
Lead Time :
180 days
Application

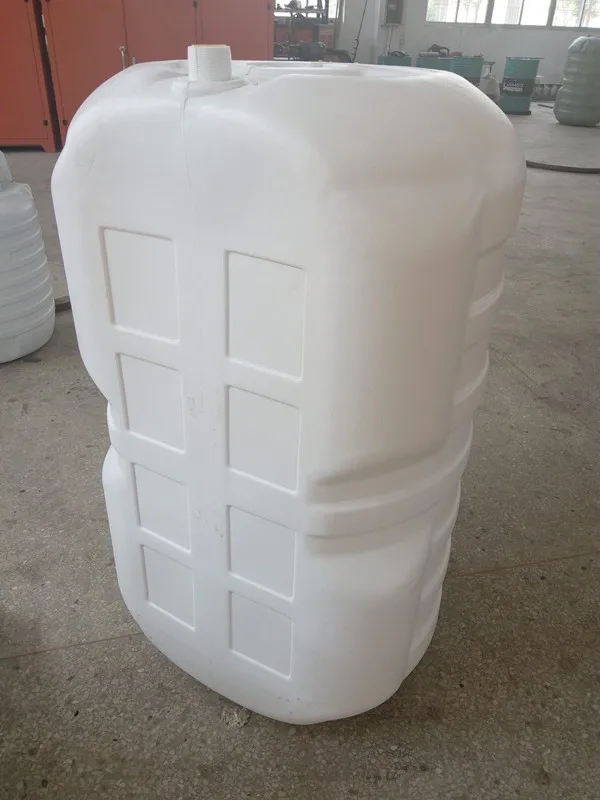

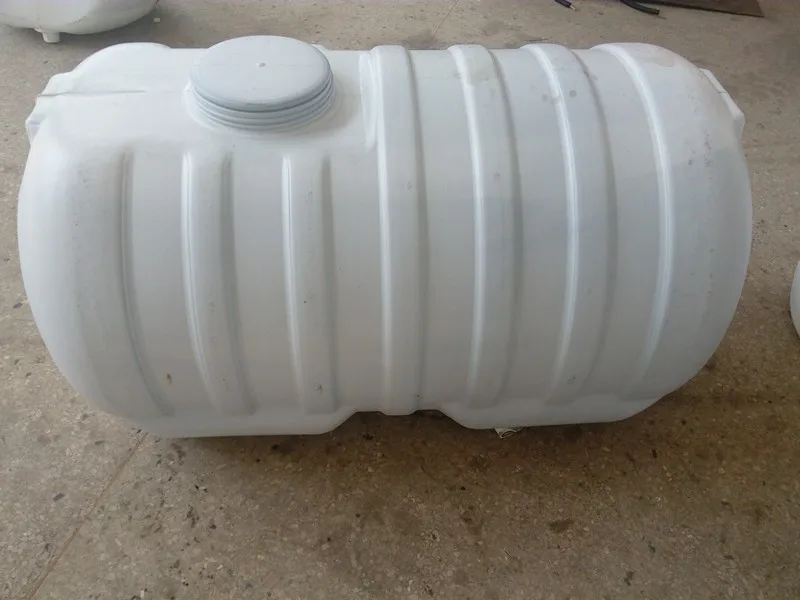

   The TVA-3000L Series blow molding machine is applicable for HDPE/HMWHDPE raw material, which is widely used in IBC multilayer barrels and other large-sized plastic hollow products.

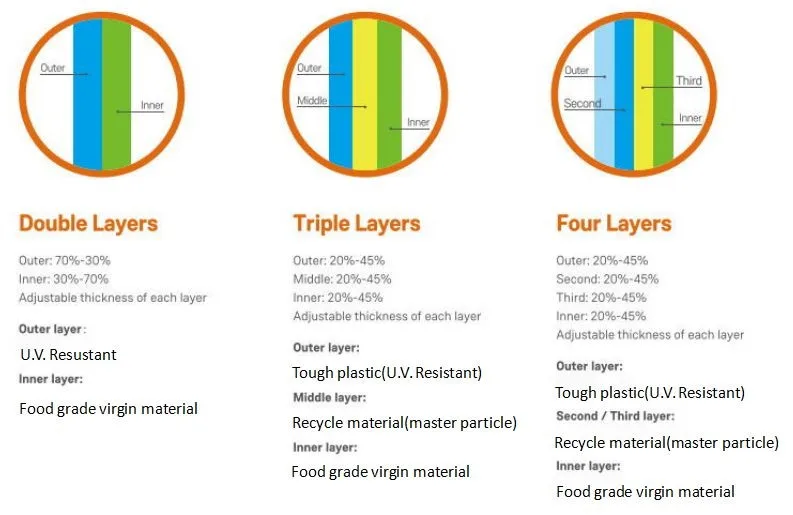

Multiple Layers are available to choose.

Main Configuration

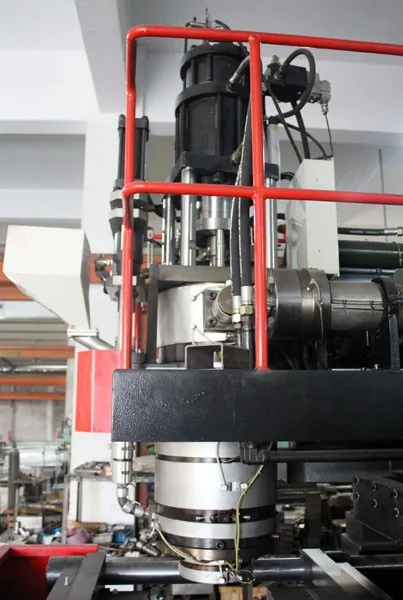

1.Die-head
  Adopting accumulator die-head, with high quality nitrogen treatment  and hardness of surface, resulting smooth flow and quick parison ejection.

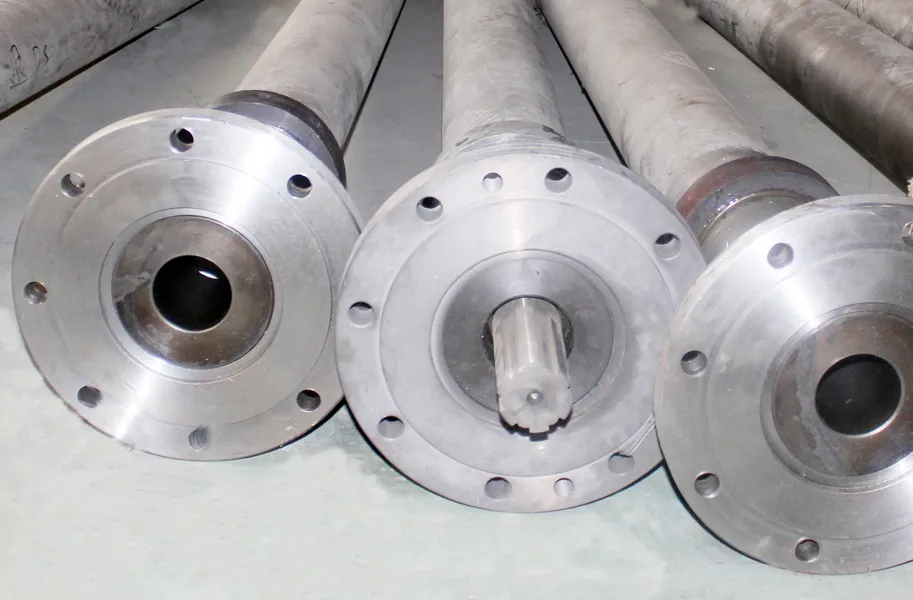

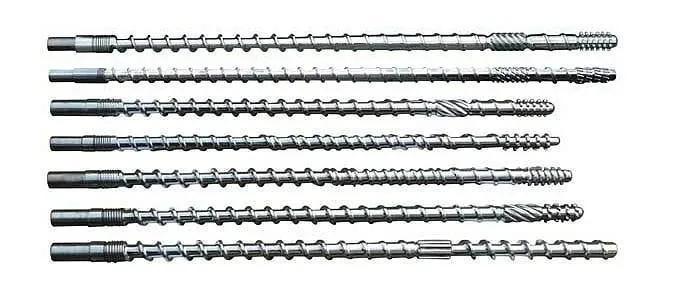

2.Extruder Screw & Barrel

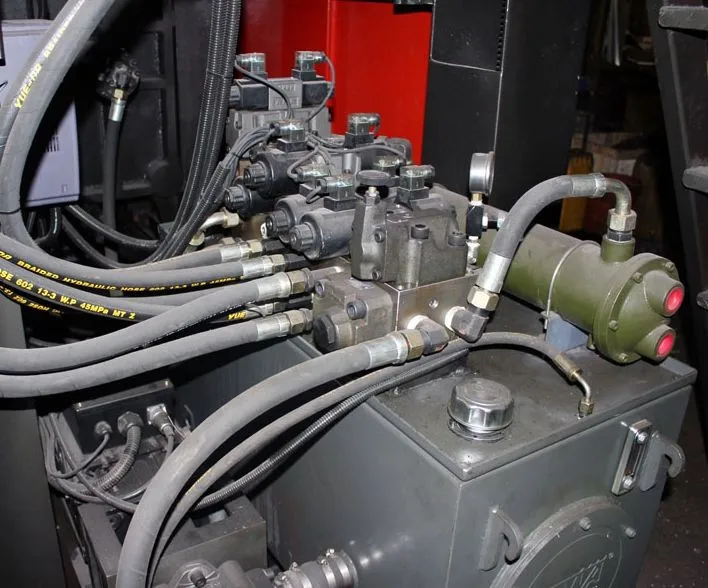

3.Oil Pump


4.Platen

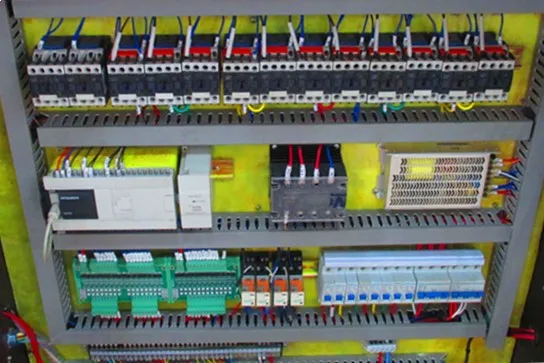

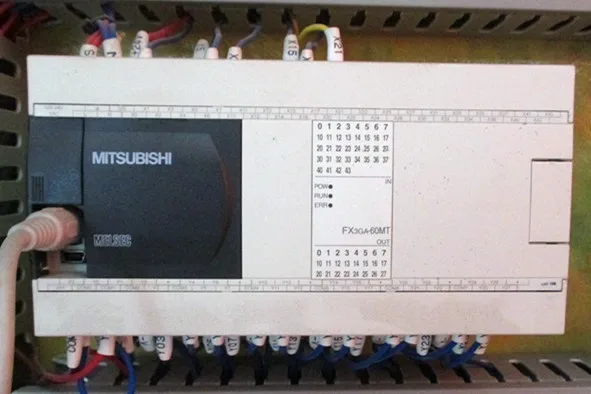

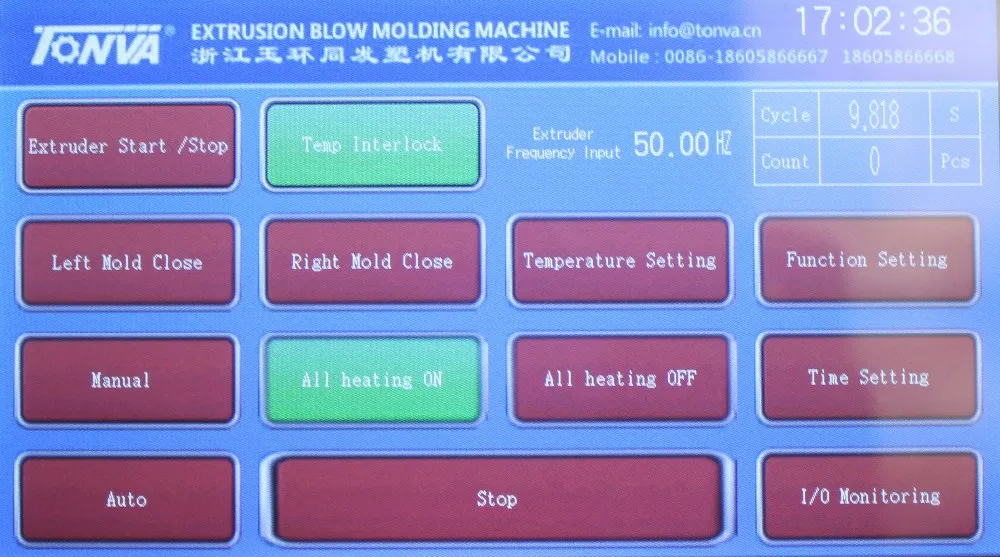

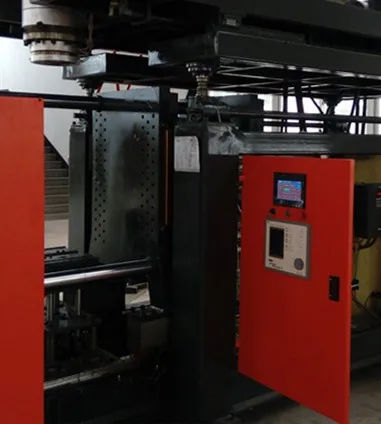

5.PLC & HMI

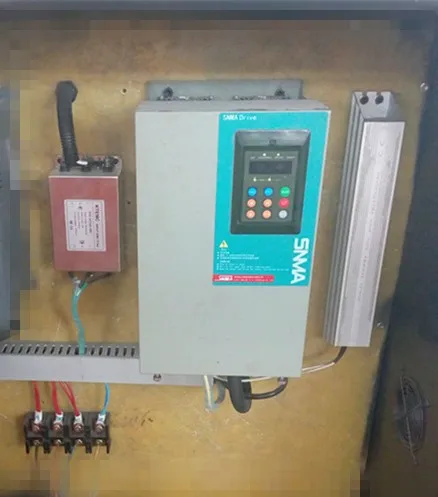

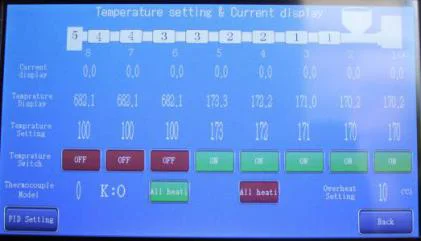

6. Electric& Temperature Controlling

7. Optional functions

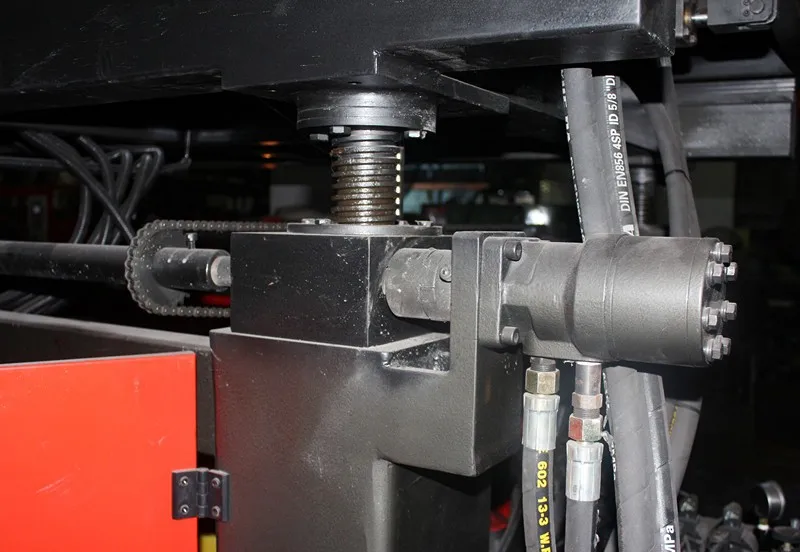

A: Up & Down


B: Servo System


Main brand list
Packing & Delivery

Packed in case or film.


Delivery Date: within 180 days after receiving the deposit and samples or drawing confirmed by buyer and Tonva.

Port of loading: Ningbo, China.

Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
Certificate & Honour

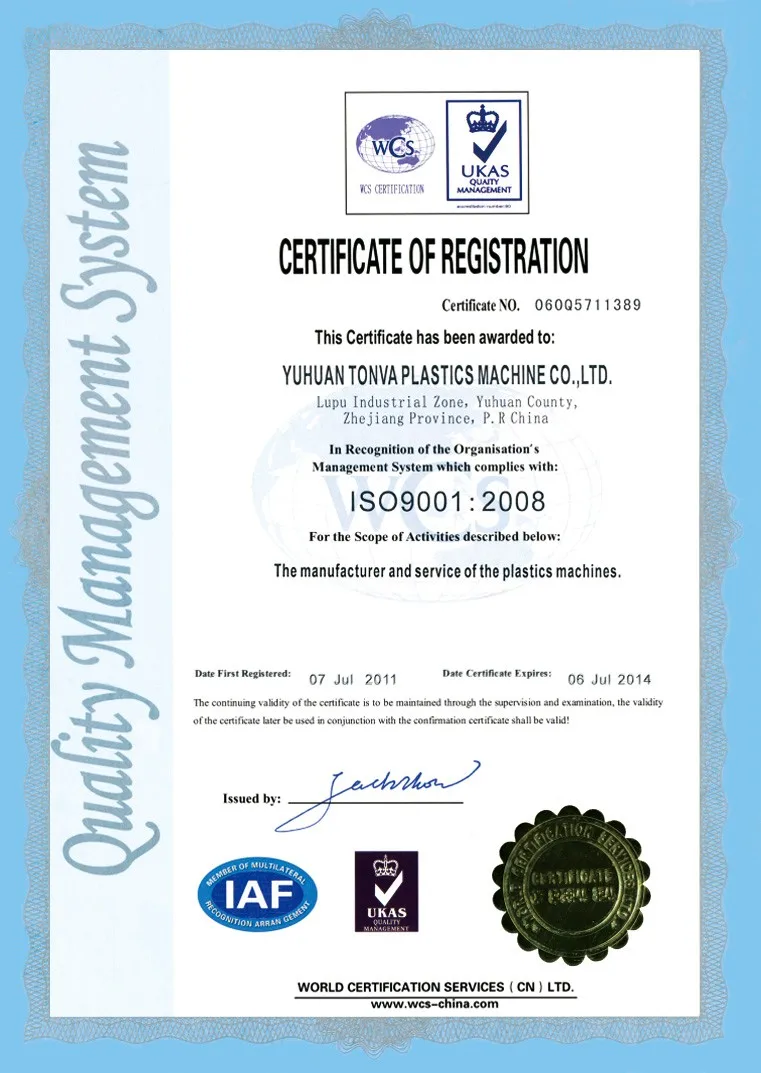

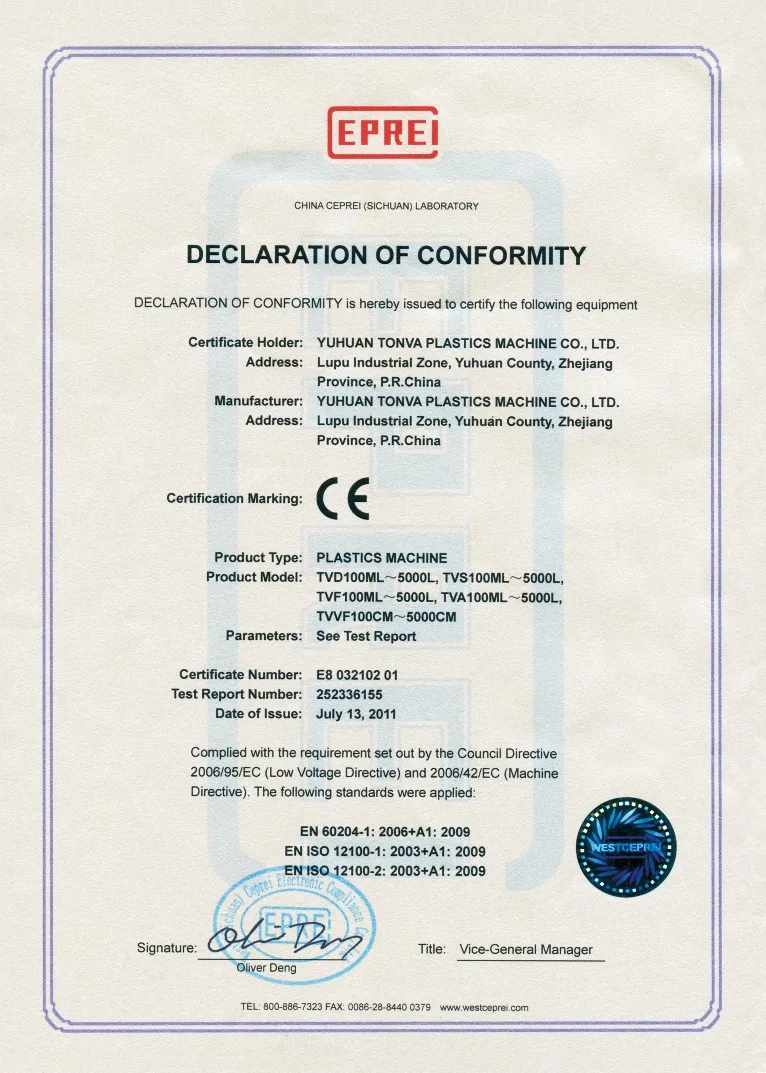

    The Tonva has got the certificate of ISO9001:2008 International Quality Control System and the  CE&SGS system. Moreover, since the company focus on innovation and invest in the advanced technology year after year, it has been named the Natioal High-Tech Enterprise in the year of 2014.


Services& Advantages

☺ Reply the email and take action in 24 hours.


☺ 100% quality inspection before the shipment.

☺ Provide training service in TONVA company or client's factory.

☺ Engineer for overseas installation is avilable.

 Blowing mould and injection mould made at TONVA original company.

☺ Auxiliary machines for complete line.

☺ Customized design as requirements.


Most of clamping platens are customized by the moulds size and products design.

Adopted servo system, saving cost.


Complete line

  We provide complete line for customers: The optional Auxiliary Machines including: Air Compressor, Water Chiller, Crusher, Automatic Feeder, Conveyor, Bottle Leakage Detector,  In-mould Labeler etc.
