Soft LDPE sea ball toys Making machine Blow Molding Machine

FOB Reference Price:Get Latest Price
US $25,000-29,800 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TVHD-3L
Key Company Capacity
Production Capacity >
  • Employees: 101 - 200 People
  • Factory Size: 10,000-30,000 square meters
  • No. of Production Lines: Above 10
Research & Design >
  • No.of R&D Engineer: 11 - 20 People
  • Production Certification: 3
  • Trademark: 1
Trade Capacity >
  • Export Mode: Have Own Export License
  • Export Percentage: 81% - 90%
  • No. of Employees inTrade Department: 11-20 People
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TONVA
Voltage:
380V
Power(W):
15kW
Dimension(L*W*H):
3.2*2.0*2.2
Weight:
6800kg
Certification:
ISO9001;BV;CE;SGS
Warranty:
1 Year
Raw Material:
PE/PP/PA/PVC etc
Working Stations:
double
Product range:
3ml -3L
Clamping Force:
60KN
Clamping:
hydraulic
Parison Controller:
Optional
View-stripe:
Optional
Multilayer:
Optional
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
35 Set/Sets per Month
Packaging & Delivery
Packaging Details
Film packaging or wood packaging usually
Port
Ningbo







Up To 3L PE Bottle EBM For Cleaning Jerry Can

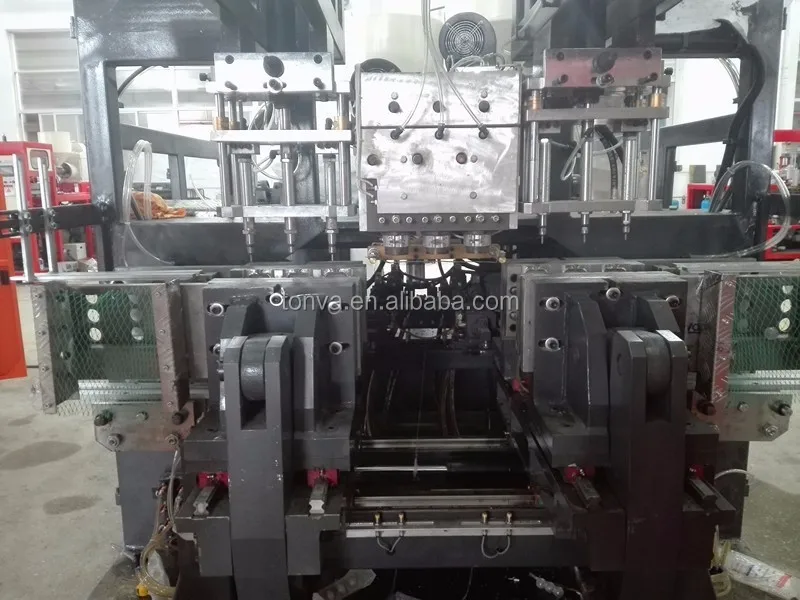

Model: TVHD-3L, Hydraulic System Extrusion Blow Moulding Machine

Product Possible: Sea balls,dropper,plastic jerry cans,bottles,pots,toys and kettles etc

Max Product Volume: 3L

Plastic Material: HDPE,LDPE,PP,PVC,EVA etc

Head No.: Single Head To Six Mould Head(depend on client's product)

Multiple Laers: Single Layer To Six Layers(depend on client's product)

Option Function: View Stripe,Patison Controller

Auxiliary Equipments: blow mould,mixer,vacuum auto-loader,dryer,crusher,water&fans chiller,air compressor,conveyor system for deflashing parts,conveyor system for finished product delivery,leakage tester……



PRODUCT DESCRIPTION

1. Small size,high speed,stable and energy-saving;

2. Advance design and analysis system from Europe and America;

3. It can match the auto bottle mouth deflashing device;rotary bottle mouth cutting device ,conveor belt and automatic crusher system;

4. Daily output (24 hours) reached approximately from 12,000 to 86,000;

5. Product from 0.2 to 3L plastic hollow products;

6. Single or double station of extrusion plastic blow moulding machine.









PACKING & SHIPPING



GUARANTEE & SERVICE

a. Reply the email and take action in 24 hours.
b. 100% Quality inspection before the shipment.
c. Can training clients operator for free in selle's factory.
d. Engineer overseas is available.
e. Blowing mold and injection mold made original.
f. Auxiliary machines for complete line.
g. Customized design as requirements.



1,Instruction for Installation and Debugging:

* Before delivery, TONVA takes responsiblity for debugging of machine, in order to make sure provided machine could be safely and smoothly put into operation.
* TONVA also take responsiblity to have debugging overseas, and clients aborad please first send invitation,then provide our engineer with round-trip tickets,accommodation,vehicle and USD80 per day for salary.


2,User Training:
Before delivery,TONVA will take responsibility to indoctrinate technical training to the users so that they could understand machines' features and could operate the machine by themselves.

3,Warranty Period:
The waranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.
