1000L Plastic Water Tank Blow Moulding Machine Price

FOB Reference Price:Get Latest Price
US $138,000-178,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
water tank
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Tonva blow molding machine
Model Number:
TVA-1000-III
Voltage:
380VAC,50HZ
Power(W):
330kw
Dimension(L*W*H):
6.8*5.0*4.5m
Weight:
34 ton
Certification:
CE;ISO9001;SGS;BV
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Product range:
200L-1000L
Die head:
Single Accumulator die-head
Work station:
single station blow molding machine
Screw diameter:
110mm+110mm+110mm
Recycle material:
available
Temperaturer controller:
PID+PWM system controlled by PLC
Brand name:
TONVA
screw ratio:
30:1
Supply Ability
Supply Ability:
50 Set/Sets per Year
Packaging & Delivery
Packaging Details
waterproof film packing standard; wooden case is available; two 40HP container can load one machine with some auxiliary machines
Port
NINGBO
Lead Time :
4 month after receive 30% deposit
Product Overviews

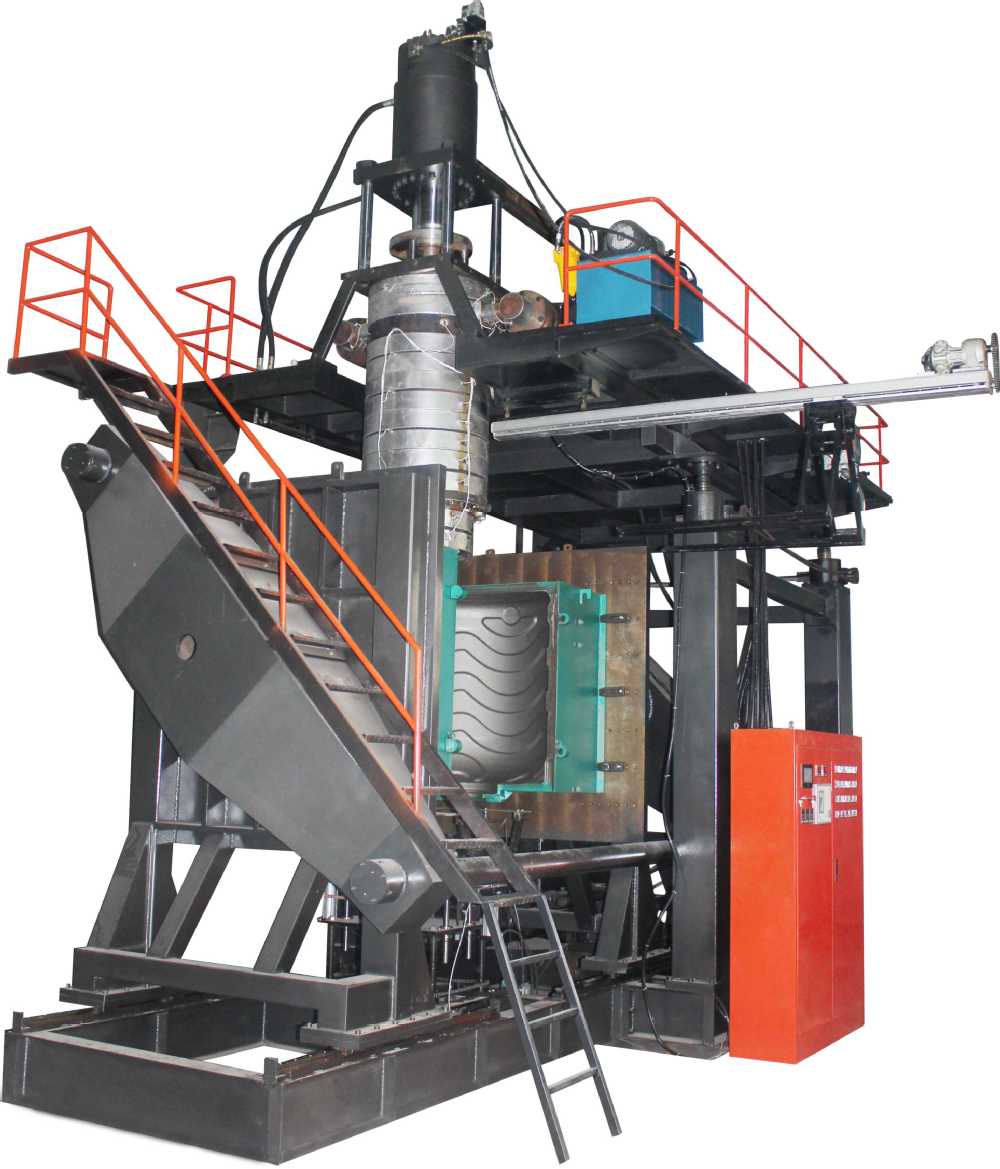

1000L three layers water tank blow moulding machine price

Model:  TVA-1000L-III



Basic Specification:image007

  • Single Station / Single Die- head
  • Three layers: 110mm +110mm+110screw / 75kw+75kw+75kw motor for tank
  • HDPE / HMWHDPE etc material;
  • Output (Bottle per hour):
  •      1000L  around  9-12 BPH



  •  Working condition:
  • Power supply: 380VAC/50Hz (depending on client's country)
  • Water Cooling: 20℃  (30HP Water chiller )
  • Air source: 0.6Mpa, 0.8m3/min  18kw screw type air compressor



Application

image023image021image015image019image017 220L drum mould and sample







Main Configuration



Electronic control system: Adopt Japan MITSUBISHI PLC and touch-screen interface control system, with overheating/overload automatic alarm function,perfect system program (process) design.



Hydraulic system: Adopt Japan YUKEN hydraulic system, soft commutation, low noise, long service life, make the machine operation more accurate and reliable.



Extrusion system: With 30:1 length-diameter ratio screw, hard tooth flank gear box. Barrel and screw are 38CrMoALA with nitriding processing, brings corrosion resistance, wear resistance, unique plasticizing system design and high speed mixing section, make it with good performance of high polymer material extrusion. Equipped with automatic temperature controller, heating by cast aluminum, and with fan cooling, to ensure the accuracy of the temperature. Main motor speed with inverter control, high efficiency and energy saving, power saving up to 20-30%.



Die head system: Adopt nowadays most advanced accumulator die head, mirror runner, change color and faded quickly. Accumulator tank,lining, swaging plug are 38CrMoAlA, with nitriding treatment, ensure reliable and durable, no eccentric.



Clamping system: Double tie rod hydraulic clamping, the structure is compact, effective mold size increase 25%, double clamping pull rod center, guide rails positioning accurate, max clamping stroke can reach 2300mm.



Parison control system: Adopt imported Japan MOOG 100 points parison controller, cooperating with special electronic scale, make the parison thickness can be freely adjusted during ejection, to meet ideal requirements.



Air system: Adopt Taiwan AIRTAC pneumatic valves for blowing and air releasing process, working portable and endurable.



Cooling system: All the water way are setting reasonable and reliable.



Robot arm: Plastic products automatically taken out device, equipped with hydraulic motor and mechanical transmission type of manipulator.





Technicla Patameters

Category

Item

Unit

Parameter

Basic Specification

Raw material

-------

HMWHDPE,HDPE

Max container capacity

L

1000

Number of Die Head

set

1

Weight

T

34

Dimension(L×W×H)

m

8*5.0*5.2

Extruder

Diameter of screw

mm

110*3

L/D of screw

------

30:1

Plasticizing capacity

Kg/hr

450

Extruder Drive Motor

kw

75*3

Heating Load

kw

48

Accumulator Die Head

Accumulator Capacity

L

35

Heating Load

kw

45

Heating zones

pcs

4

Clamping Force

Mould open space

mm

2300

Mould thickness

mm

1000

Maximum Mould size within Tie Rods

mm

1200 (W) x 1500 (H)

Mould Clamping Force

KN

800





Hydraulic system

Oil pump drive power

kw

37

Total power

kw

330

Average power consumption

kw

230

Blowing Pressure

Mpa

0.6

Cooling Water Power

Mpa

0.2







our services

1. Reply the email and take action in 24 hours;
2. 100% Quality inspection before the shipment;
3. Offer trainning to clients operator for free in seller`s factory
4. Engineer overseas is avilable
5. Blowing mould and injection mould made orginal
6. Auxiliary machines for complate line.
7. Custimized design as requirements.
