2000L plastic blowing machine price

FOB Reference Price:Get Latest Price
US $180,000-260,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
big water tank,drum
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Tonva
Model Number:
TVA-2000L
Voltage:
380v
Power(W):
30kw
Dimension(L*W*H):
8.2*5*5.3
Weight:
34
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Packaging & Delivery
Packaging Details
Film packaging or wood packaging usually
Port
NINGBO
Lead Time :
within 60 days after receiving the deposit

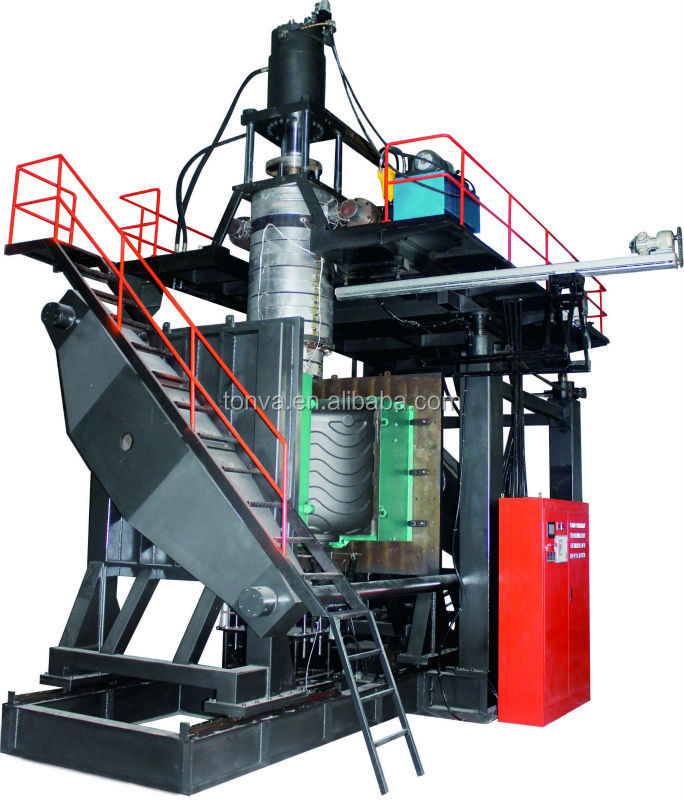

TONVA TVA-2000L Model large plastic blow molding machine:




The factory:

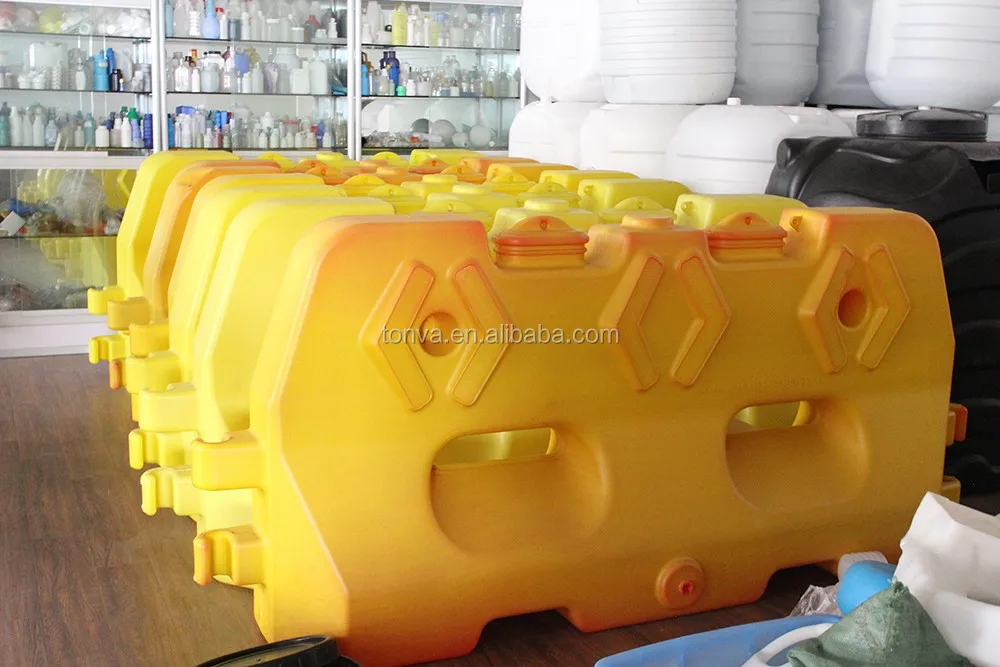

Water tank samples:



2000L big tank blow molding machine technical parameters:



Item

Spec.

Standard specifications

Basic Spec.

Applicable Raw Material

PE/PP

Max Container Capacity

2000L

Dimension (L*W*H)

8.2× 5.0 × 5.3m

Total Weight

34ton

Extrusion system

Main (driving) screw

Φ140mm

Screw ratio

30:1

Barrel screw

38CRMOALA

MAX extruder output

360KG/H

Driving mode

Motor, gear case, belt transmission

Drive motor

110KW

Screw speed

10-60rpm

Adjust of Up and Down

yes

Temperature Control

8

Heating power

30KW

Cooling  fan

6

Cooling system

yes

Clamping System

Clamping direct

2 tie

Clamping speed

600mm/min 420mm/min

MAX locking plate spacing

1800mm

Mold open spacing

3200mm

Clamping force

1400KN

Max Mould thickness

1250MM

Mould fixed form

Clamping cap

Stroke  control

Proximity switch

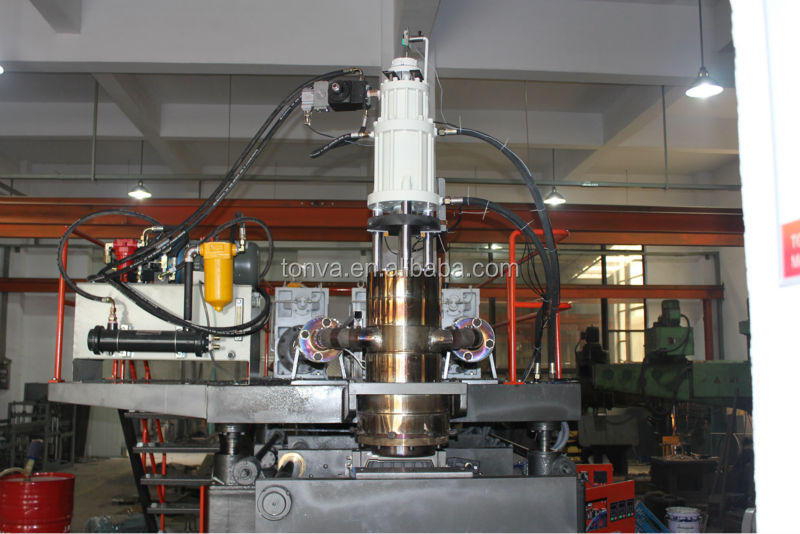

Die head

Die head material

38CRMOALA

Accumulator volume

70L

Heating power

40kw

Injection amount in one time

30Kg

Ingate size

Φ230~300mm

Heating Method

Electric heating

Temperature Regulation Sides

4 sides

Parison thickness adjust

MOOG WALL THINKNESS CONTRAL SYSTEM

Injection stroke control

yes

Means of adjusting thickness

Internal mold control

Radial adjustment

±2.5mm

Injection pressure

75~140kg ; flexible

Max injection speed

2.5kg/sec

Down-shot unit

Blowing needle stroke control

Inductive switch

Blowing needle to support the material

Yes

Blowing needle position adjustment

Yes

Drive mode

Hydraulic motor

Robot

Lead control

Pillar

Temperature control

Water

Overload protection

Yes

Control action

PLC

Machine control

Man-machine operating interface

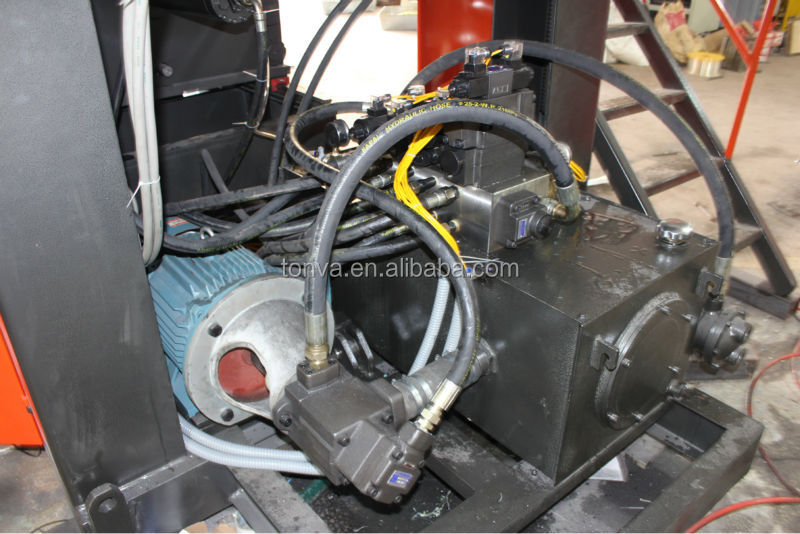

Oil hydraulic system

Motor

45KW

Directional control

Reversing valve

Maximum pressure rating

160Kg/cm2

Directional control

Reversing valve

Pneumatic System

Pressure control

Stand alone type

Maximum pressure rating

7kg/cm2, 1.1m3/min

Power Consumption

Total Power

240KW

Average Power Consumption

170KW

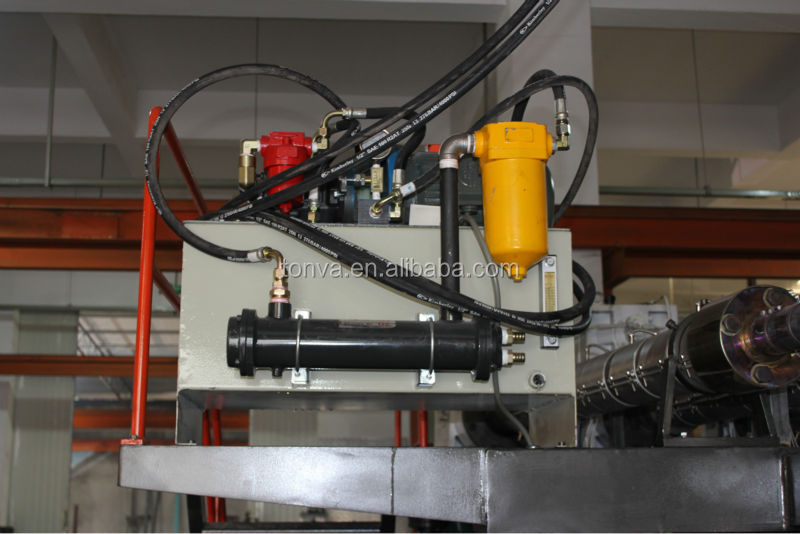

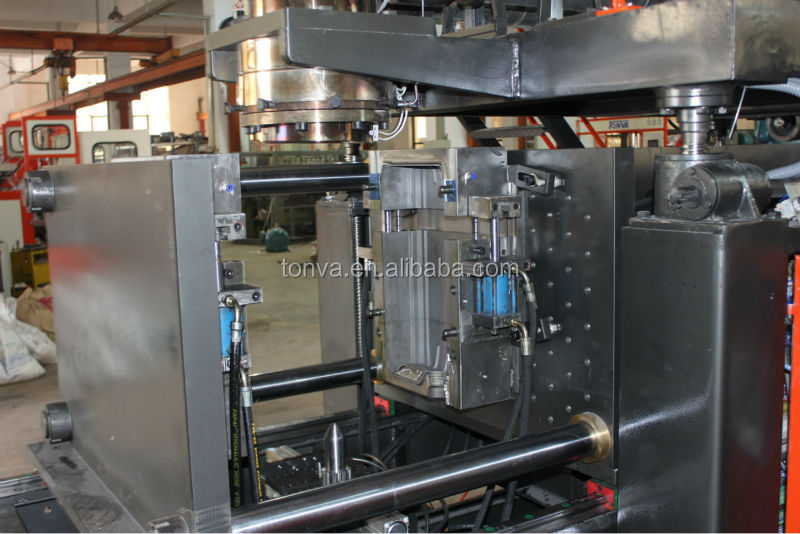

Detailed  pictures 569955215_399.jpg




TONVA 2000L large Blow moulding machine Basic Characteristic:

1. Single station, Single accumulator type Die Head, 140mm screw, 110kw  motor, PE / PP/ ABS etc.

2. Max capacity: 2000L (single cavity)

3. Power supply: 380VAC, 50Hz (depending on client’s requirement)

Tonva blow moulding machine profile:

Tonva plastics machine Co.,Ltd. specilized in blow molding machine and moulds since 1993. we can produce products from 5ml to 3000L.And we also do multiple layer products from 1 layer to 7 layer.TONVA blow molding machines are trust by customers over 40 countries all over the world.The big machine series from 100L to 3000L are used for civil barrel ,double L-ring barrel,plastic tray for forklift ,underground storage tank, tools kit ,multi-layer automobile tank and so on.

Blow moulding machne Quantity Control and Service:

1. TONVA takes responsible for debugging of machine and all molds before shipment.

2. Engineer Installing machine and training workers at customer’s site .

3. 1 year warranty after installation for machine and molds..
