20L jerry can plastic HDPE products making extrusion blow molding machine with hydraulic

FOB Reference Price:Get Latest Price
US $34,800-43,888 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TVA-20L
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TONVA
Voltage:
Customer
Power(W):
63KW
Dimension(L*W*H):
4.3*2.2*3.3M
Weight:
9.5T
Certification:
ISO9001:2008,CE,SGS,BV
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Die Head Material:
38CRMOALA
Container Capacity Max:
20L
Diameter of Screw:
70MM
Power:
Hydraulic
Parison Controller:
Adopt
Up and down platen:
Adopt
Robot Discharge:
Optional
Servo System:
Optional
Supply Ability
Supply Ability:
400 Set/Sets per Year
Packaging & Delivery
Packaging Details
Film packaging,fix four feet of blow molding machine in the container;
Port
NINGBO
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 45 To be negotiated

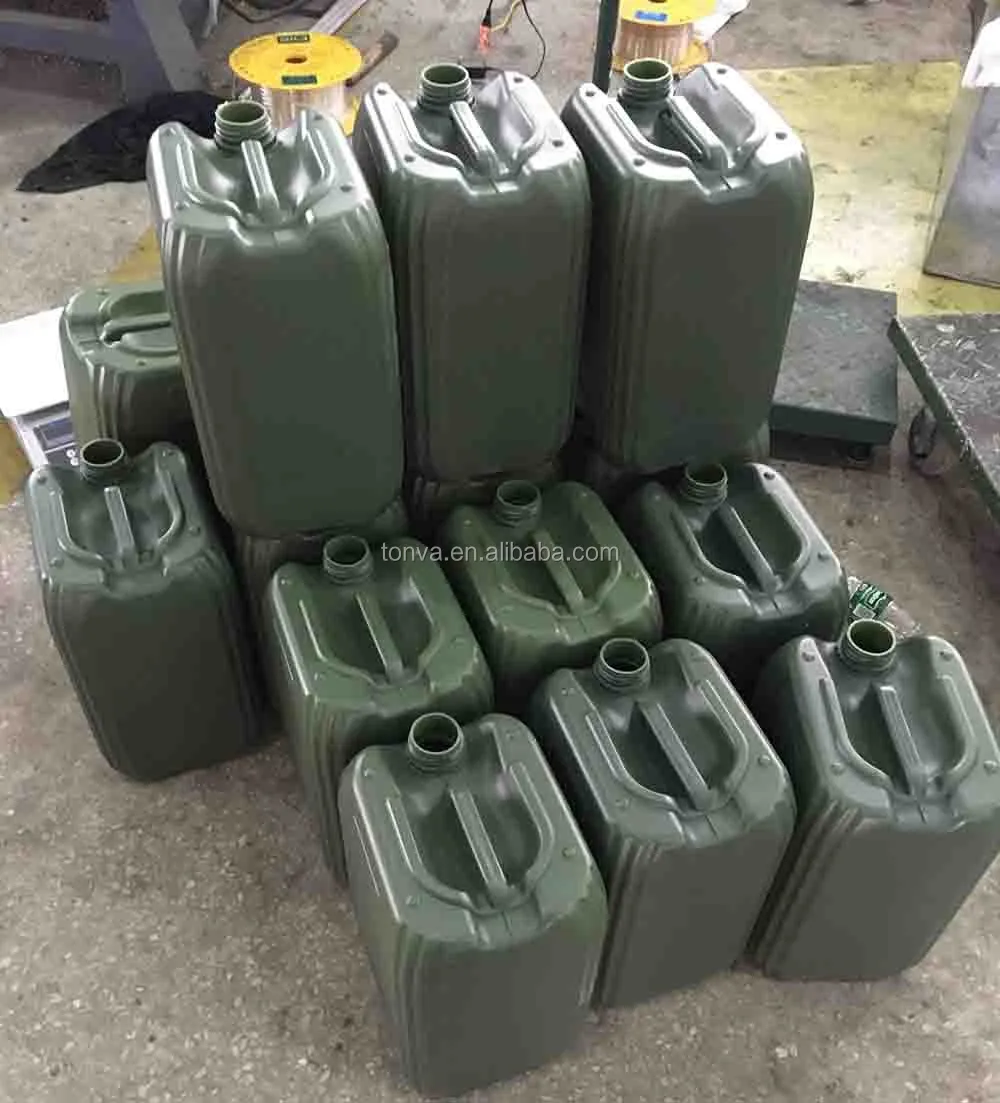

Application
Parts
Detailed Images

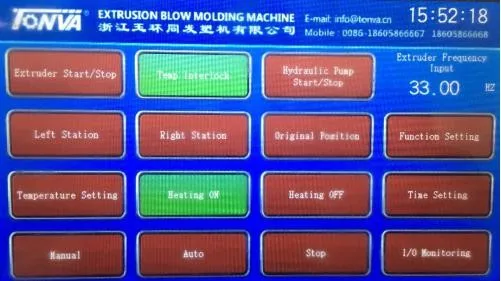

PLC control

1.Adopting PLC to control the action program of the whole machine;


2.The process of production can be changed easily by special programming, in order to meet the different kinds of requirements.

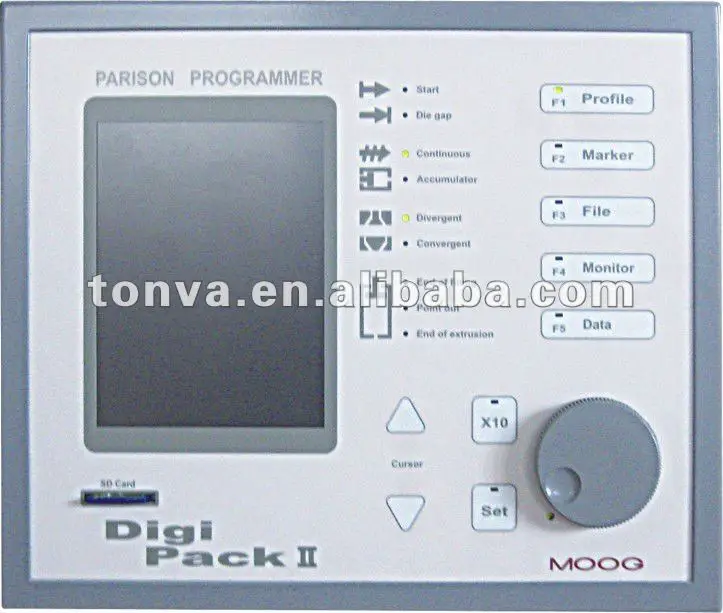

Parison Control System(Adopt)

1.Adopt imported Japan MOOG 100 points parison controller, cooperating with special electronic scale, make the parison thickness can be freely adjusted during ejection, to meet ideal requirements.
2.To get good quality, by controlling the thickness of bottles each part as required.
3.To reduce the cost of bottle, can divided the raw material more even from up to bottom.
4.Independent hydraulic power pack unit for parison control cylinder;

Robot Discharge(Optional)

1.Pneumatic robot arm to take out the final product from molding station, safe and labor saving;


2.Actuated by SMC cylinder and regulated by solenoid directional valves;

Packing & Delivery

Delivery Date

Within 45 wokrdays after receiving the deposit and samples/drawing confirmation by buyer and TONVA.

Port of Loading

NINGBO, CHINA.

Payment

30% TT deposit, balance before shipment.

About Us
Service Support

Adhere to customer service as the center, continuing to provide customers with a one-stop service beyond the expectations of the customer service, guest house forever partners, which we have been insisting and advocate the concept of service. We stand in the customer's position, pay attention to the customer's opinion, and constantly improve our service system and related processes, to maximize the satisfaction of customer needs. Our five service standards:
1,Customer is always the first.
2,Customer satisfaction is the standard of our work.
3,Courtesy, wholeheartedly.
4,Real price, quality first.
5,Full cooperation, to ensure rapid. Our "Five" service standards:
6,Sincerely treat customers -- a matter of conscience.
7,Close - standing customer perspective, heart to heart.
8,Careful - careful, do not leave out a problem, do not let go of a detail.
9,Patient: remain patient in the service process, do not bother to answer questions, 100 not tire.
10,Rest assured that the service results so that customers can rest assured.

After-sale service
1. Debugging and installation
Before delivery, we are responsible for the commissioning of the machine, by the user in our factory testing and acceptance, to meet the requirements of the product quality before shipment.
2. User training
If the user needs, we are responsible for sending technical personnel to the user to install and debug and training, the cost of our own burden.
3. Defects Liability Period
Machine under normal production and maintenance, the main components such as motor, screw, gear box, computer, inverter in one year, there is a failure, we are responsible for two days to reach the replacement.
