Quick Details

  • Condition: New
  • Application: Bottle
  • Blow Moulding Type: Extrusion Blow Moulding
  • Automatic: Yes
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: TONVA
  • Model Number: TVD-1L
  • Voltage: 380Vac
  • Power(W): 50Hz
  • Dimension(L*W*H): 2.6m*1.6m*1.8m
  • Weight: 2.3Ton
  • Certification: CE;ISO9001;SGS
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details Film packaging & wood packaging usually
Delivery Time 30 workdays

Product Description

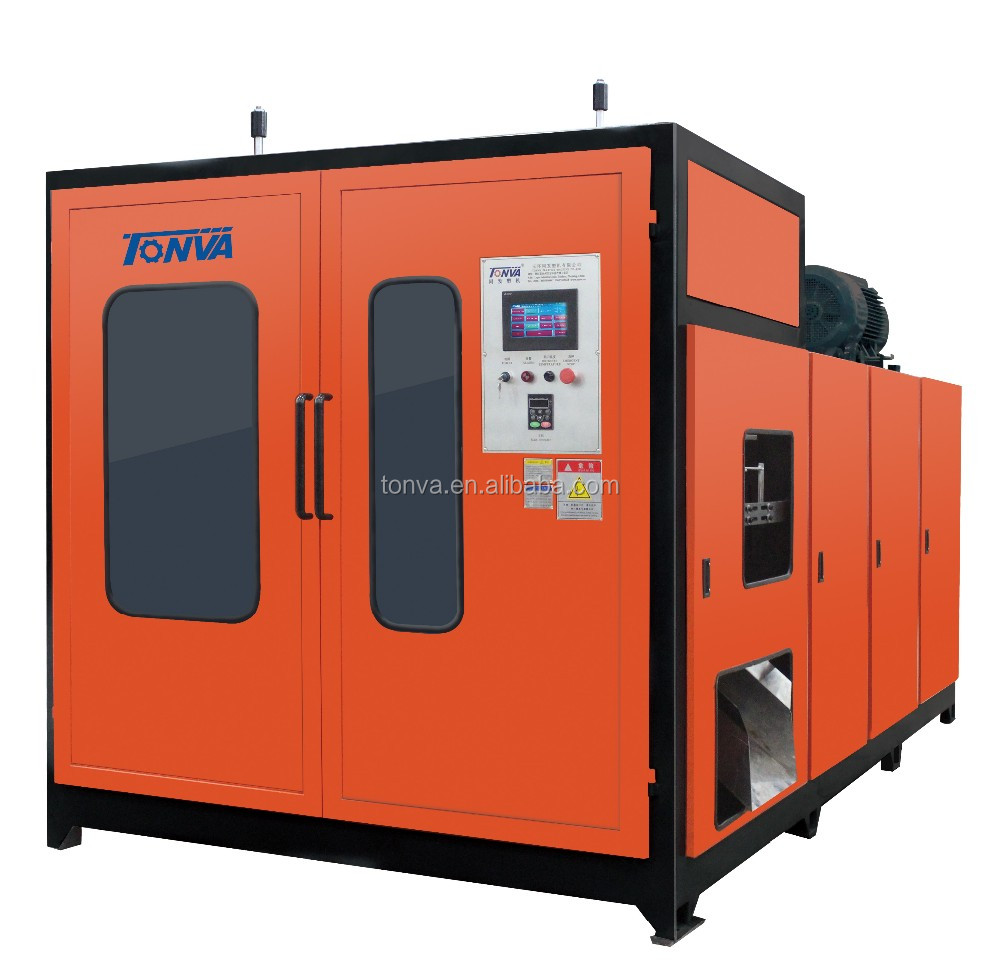

TVD-1L Blow Molding Machine Main Features

1,Materials:PE,PP,PVC,HDPE,EVA,PVC etc.
2,Suitable for containers of 5ml-1L

3,Double working stations

4,PLC and HMI control system

5,Auto cutter for round jars and auto bottom mold release system

6,Blow nozzle position adjusts automatically and is equipped with water cool system

7,High efficiency&reliablity;user friendly controls

8, high production, low power consumption,standard process

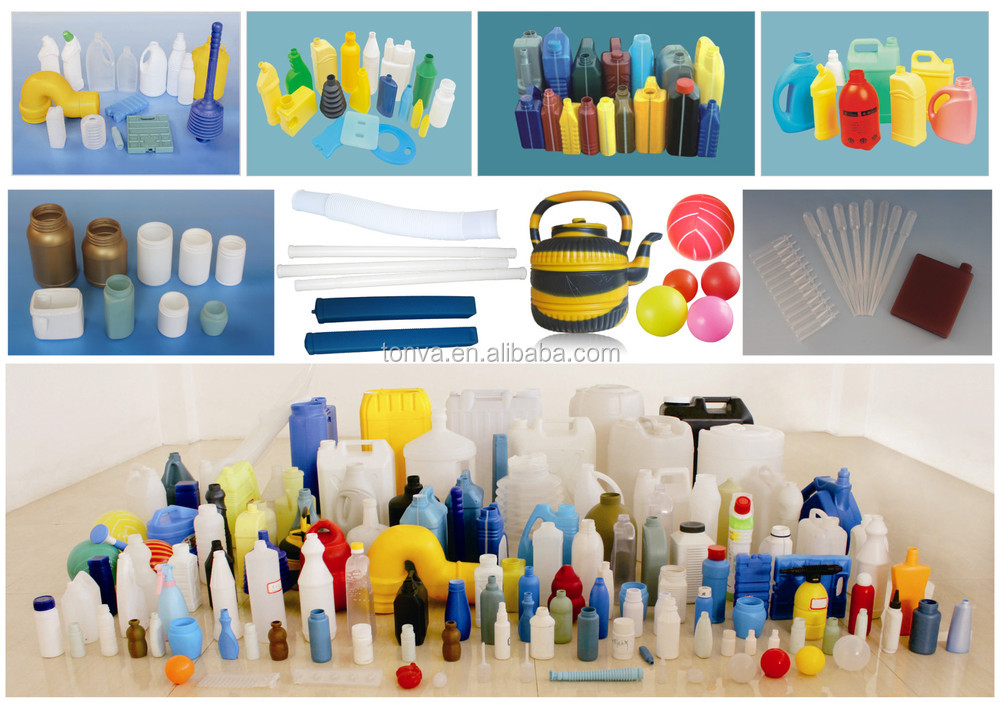

Products Display:









Basic Working Theroy:



This kind of machine is equipped wih PLC control system,operating manual in English,pneumatic operated,clamping by hydraulic cylinders actuated by pneumatic cylinders,it's also equiped with deflashing system, resuilting in saving time and manual cost for clients.

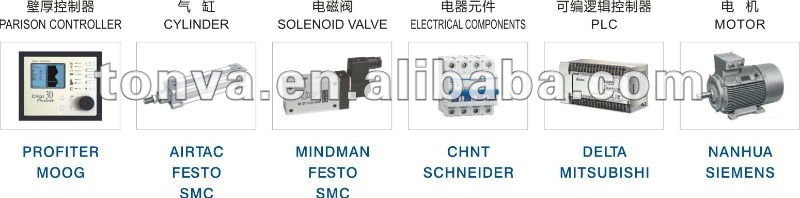

Our machine adopts famous brands in most component parts,almost from Germany,Japan,France,Taiwan

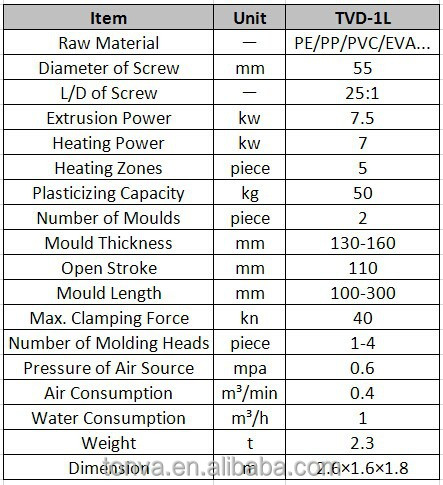

Technical Specification:













Company Information






Our Services

1,Instruction for Installation and Debugging:

Before delivery,TONVA is responsible for debugging of machines,to make sure the prodvided machine could safely and smoothly put into operation;

TONVA also takes responsibility to have debugging overseas,and clients abroad please send invitation to engineer of TONVA in advance,provides the engineer with round-trip tickets,accommodation,vehicle and USD80 per day for salary.

2,User Traning:

Before delivery,TONVA will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.




3,Warranty Period:

The warranty period for TONVA machine is one year with a life-long maintenance.Other stipulated warranty could be made if clients require special quality guarantee.

Note:Above information is only for reference,the product can be customized based on different requirements.
